Seamless Forged STD Carbon Steel Elbow Astm A234 Wpb 8 Inch

Seamless Forged STD Carbon Steel Elbow Astm A234 Wpb 8 Inch
Seamless Forged STD Carbon Steel Elbow Astm A234 Wpb 8 Inch Seamless Forged STD Carbon Steel Elbow Astm A234 Wpb 8 Inch Seamless Forged STD Carbon Steel Elbow Astm A234 Wpb 8 Inch

Large Image :  Seamless Forged STD Carbon Steel Elbow Astm A234 Wpb 8 Inch

Product Details:
Place of Origin: HEBEI
Brand Name: AUTHENTIC
Certification: PED ISO API
Model Number: STD,SCH40,SCH80
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tons
Price: 0.1 USD
Packaging Details: Wooden Cases Or Pallets
Delivery Time: 25 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 30000 Tons Per Year

Seamless Forged STD Carbon Steel Elbow Astm A234 Wpb 8 Inch

Description
Material: Carbon Steel , Stainless Steel Standard: ASME ,ASTM , JIS , DIN ,EN
Surface Treatment: Painting Brand Name: Authentic
Technics: Forged Model Number: Carbon Steel Fittings
Color: Black,Galvanized, Oil
Highlight:

8 inch carbon steel elbow

,

astm a234 wpb carbon steel elbow

,

forged elbow astm a234

Carbon Steel Elbow Seamless Forged ASTM A234 WPB Elbow 8 Inch



Type : large-diameter carbon steel pipe elbow

Radius: Short radius carbon steel elbow

Degree: 30.60. 90 degree Short radius carbon steel elbow

Application: shipbuliding,petroleum,chemical,gas,power,construction,etc

Product name: Elbow

Size: 1/4” to 48” Outside Diameter 13.7 mm to 1219 mm

Standard: ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25 BS1965 BS1640

DIN 2605 DIN2615 DIN2616 DIN2617

JIS B2311 JISB2312 JISB2313 JISB2316

ISO 3419-1981 ISO5251-1981

Material: A234 WPB, A105, A283-D, A135-A, A53-A, A106-A, A179-C, A214-C, A192, A226, A315-B, A53-B, A106-B, A106-C, A178-C, A210-A-1, A210-C.

Certificates: API5L ,ISO 9001:2008,SGS, BV, ccic

Wall thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS

Surface Treatment: black paint, varnish, oil, galvanized

Marking: Standard marking, or according to your request. Marking Method: Spray white paint

Packaging: wooden case & pallet

Test: Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.


Name Carbon Steel Butt-welding seamless pipe fitting
Size 1/2" - 48"
Wall Thicknes SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120,
SCH140, SCH160, XXS
Finishing Black painting, Galvanizing, Anti-rust oil
Items Elbow 90°/45° L/R(S/R), Equal Tee, Reducing Tee, Concentric Reducer
Eccentric Reducer, Cap, Elbow 180°
Standard

American Standard

Material: Carbon steel ASTM A234 WPBDimensions: ASME B16.9/B16.28

DIN Standard

Materil: ST37.0

Dimensions: DIN2605/2615/2616/2617

JIS Standard

Material: JIS G3452

Dimensions: JIS 2311/2312



The butt welding elbow is made of steel hot pressing or forging elbow, and its connection form is the butt welding of elbow and steel pipe directly. Elbow divided according to its radius of curvature, can be divided into long radius elbow and short radius elbow; divided by the pressure level to about seventeen, and the American Standard pipe is the same, which is the most commonly used STD and XS two; according to the angle of bend points, there are 45 degrees of butt welding elbow, elbow elbow 90 degrees and 180 degrees elbow and other different angles; divided by material: carbon steel, alloy steel and stainless steel.

Classification of butt welded elbows:

(1) the butt welded elbow can be divided into long radius butt welding elbow and short radius butt welding elbow according to its radius of curvature. The radius of curvature of the long radius butt welded elbow is equal to 1.5 times the outer diameter of the pipe, i.e. R=1.5D. The radius of curvature of the butt welded elbow with short radius is equal to the outer diameter of the pipe, that is, R=1D. The D is the diameter of butt welded elbow and R is the radius of curvature. If there is no special description, the general choice is 1.5D elbow.

(2) if divided by the pressure level to about seventeen, and the American Standard pipe is the same, are: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS, one of the most commonly used STD and XS two.

(3) according to the angle of the elbow, there are 45 degree butt welding elbow, 90 degree butt welding elbow and 180 degree butt welding elbow and other different angle elbow.

(4) materials: carbon steel, alloy steel and stainless steel.

How is the butt welded elbow formed?

1. method: use type forging press machine will be at the end of the pipe or part shall be rushed out, so that the outer welded elbow, commonly used with rotary swaging machine, connecting rod type, roller type.

2. rolling method: generally without mandrel, suitable for thick wall pipe inside round edge. The core is placed in the tube, and the outer roller is pressed by the roller to be used for the machining of the round edge.

3. stamping method: on the punch with taper core, the end of the tube is expanded to the required size and shape.

4. bending method: there are three kinds of commonly used methods, a method called stretch method, another method called stamping method, third roller method, 3 - 4 and two, a fixed roller, a roller adjustment, adjust the fixed roller distance, the finished product is bent pipe.

5.. Method: one is placed in the rubber tube, with compression punch above the tube bulge forming; another method is hydraulic bulging in the middle pipe, filling liquid, liquid pressure into the pipe drum to the shape of corrugated pipe production with the most is this method.

Usually the butt welded elbow is welded at the construction site of the pipeline, which is due to the different welding standards of various types of pipelines, and the on-site welding is required according to the grade of the pipeline welds. There is weld seam in butt weld elbow.

Elbow in the welding operation is completed according to the actual situation of the external environment or pipeline rust or corrosion treatment, in order to avoid the elbow in the weld corrosion or corrosion, caused by the short life-span of elbow.

Elbow before welding, welding elbow to avoid deformation, the group of the whole on both sides of the elbow is looking after the tile ends, reinforced with stainless steel arc plate and keel. According to the conventional welding methods need argon welding, considering the welding cost and waist small shrimp larger diameter, argon is difficult, comprehensive the above factors in welding by inside and outside the two welders and welding symmetrically, which solves the problem of argon, and the shape is also very good. The welding technology of argon spot welding is A022, and the welding wire is HOOCr21Nil0. Argon arc welding is used in the lower layer. Before welding operation, brush the chalk in the 100mm range of the left and right sides of the welding seam to prevent the spatter sticking on the surface of the pipe, and adopt small current before the welding operation. Multilayer, multipass, continuous welding. Overall after welding, the solder joints and splash welded elbow surface was polished on the pre welding finished pad, non-destructive testing, the inner and outer surface of the weld. The pickling and passivation pickling after elbow transport to the installation site, the site behind the installation work.

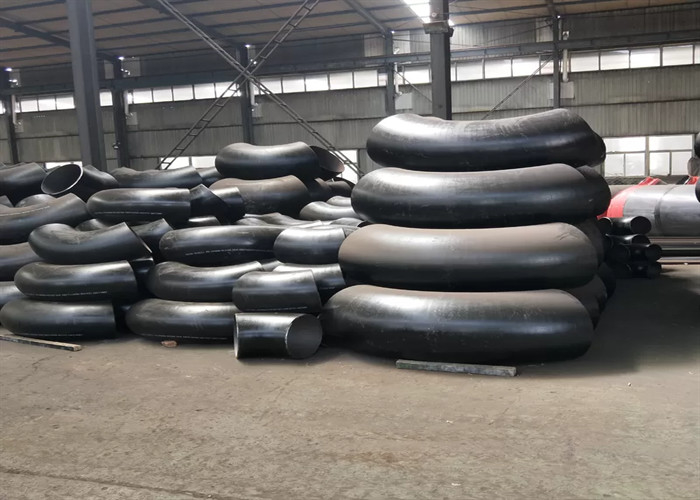

Seamless Forged STD Carbon Steel Elbow Astm A234 Wpb 8 Inch 0

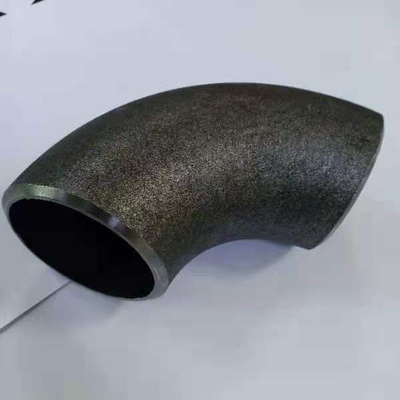

Seamless Forged STD Carbon Steel Elbow Astm A234 Wpb 8 Inch 1

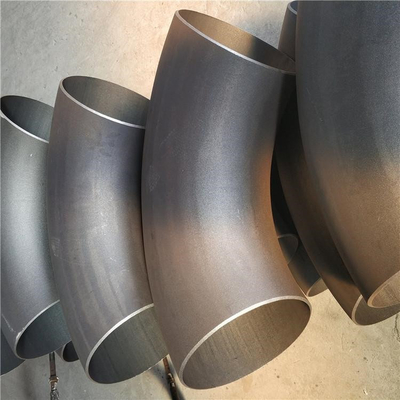

Seamless Forged STD Carbon Steel Elbow Astm A234 Wpb 8 Inch 2
