Product Details:
|
| Material: | Carbon Steel , Stainless Steel | Standard: | ASTM, ANSI, DIN, GOST, BS, GB |
|---|---|---|---|
| Technics: | Welding, Seamless, Forged, Casting | Diameter: | 1/2" To 72" |
| Payment Term: | T/T ,L/C | Packing: | Inner Poly Bag, In Wooden Cases Or Pallets, Wooden Case, Or As Per Clients' Requirements, Outter Carton |
| Highlight: | Concentric Weld Reducer 3X4inch,ANSI B 16.9 Butt Weld Pipe Fitting,Concentric Weld Reducer SCH40 |
||

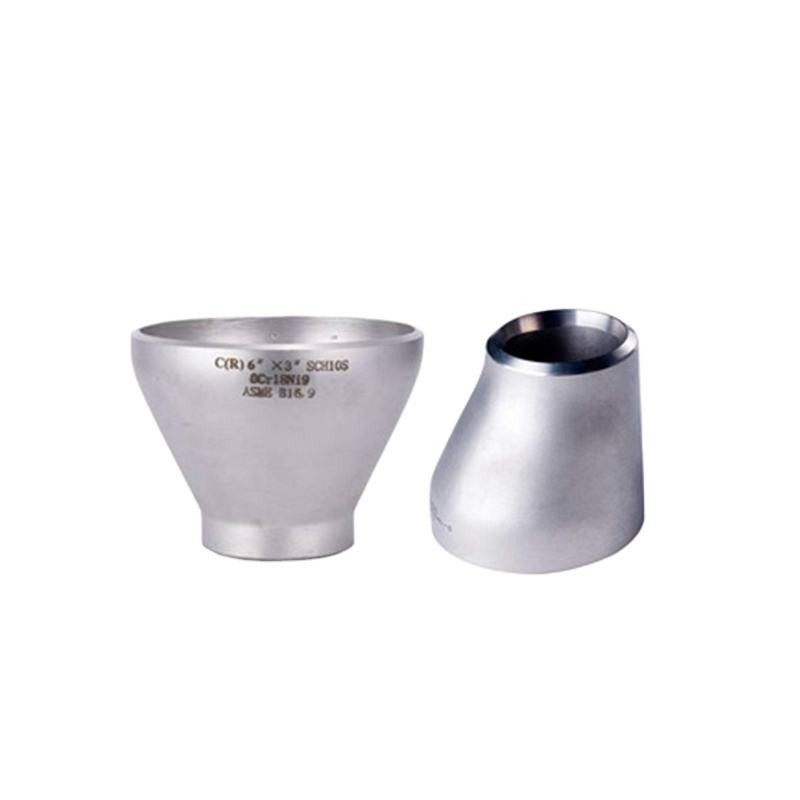

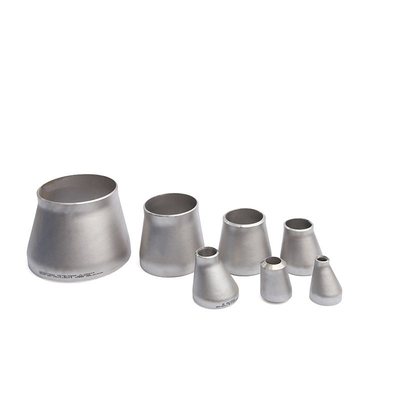

Steel Pipe Fittings Concentric Reducer 3X4inch SCH40 ANSI B 16.9 Butt Weld Pipe Fitting
The reducer is a joint used to connect pipelines in thermal insulation steel pipe projects, which is also known as a reducing joint. When the nominal diameters of the pipes that need to be connected in the renovation or new pipe network are inconsistent, it is necessary to use the commonly known "big and small ends" to connect them. The big and small ends can be divided into two types: concentric reducing and eccentric reducing. After connecting the pipes with concentric reducing, the center of the circle is in a straight line, and after connecting the pipes with eccentric reducing, the center of the circle is not in a straight line.
| Name | Carbon steel reducer pipe fittings |
| Wall Thickness | Sch10, Sch 20, Sch40, Sch80, Sch160, STD, XS, XXS,SGP |
| Material | Carbon steel: 10#, 20#, 45#, ASTM A105 etc. Alloy steel: ASTM A234 GR.WPB,ASTM A182 GR.F22/F11 CL2/CL3, ASTM A234 GR.WP11/WP22 CL.2/CL.1 Stainless steel: SS304, SS304L, SS304H, SS321, SS316, SS316L, SS310S, 904L, 254SMO , 253MA etc. Duplex: 2205, 2507, F55 etc. Nickle Alloy:Hastelloy C276, Inconel 601,Inconel 625, Inconel 718, Monel 400, Monel K500 etc. |
| Standard | ANSI, DIN, JIS, GB, GOST, EN ,BS |
| Products | Elbow, Union, tee, flange, reducer |
| Technic | Forged, Casting, Heat treatment |
| Packing | Wooden case, Wooden pallet, Carton box,as customers' requirement |
| Cerftificate | ISO, PED, API, GOST |
| Applications | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| Third Party Inspection | TUV, BV, SGS |
Cangzhou Authentic Pipe Fitting Manufacturing Co., Ltd. is located in Mengcun County, the capital of pipe fittings in China and the center of pipe fitting manufacturing. It covers an area of 100,000 square meters and a building area of 50,000 square meters. Our company has a strong workforce. There are more than 200 employees, including more than 60 professional and technical personnel, with the ability to produce various pipe fittings.
The company has a number of pipe fittings manufacturing production lines, with independent pressing, machining, intermediate frequency hot pushing, cold forming, hot extrusion, heat treatment and other technologies. In addition, in order to ensure product quality, companies are paying more and more attention to the improvement of inspection equipment. Advanced equipment, along with corresponding testing capabilities, are constantly being used, such as chemical elemental analysis, metal testing, physical inspection, and non-destructive testing. In addition, we use advanced material composition analysis equipment - a continuous reading spectrum equipment can directly and accurately test the chemical composition of various metal materials.
