Product Details:
|
| Material: | Stainless/alloy Steel | Connection: | Welding |
|---|---|---|---|
| Type: | Elbow,seamless,welding | Surface Treatment: | Mirror Polished,High Polished,Sand Blasting |
| Standard: | Gb And So On,DIN,ASTM,ANSI / ASME | Product Name: | Schedule 40 Stainless Steel 90 Degree Elbow SCH160 R=1.5D |
| Highlight: | SCH10S SCH40S Butt Weld Pipe Elbow,BW LR Butt Weld Pipe Elbow,STD BW Long Radius 90 Degree Elbow |
||

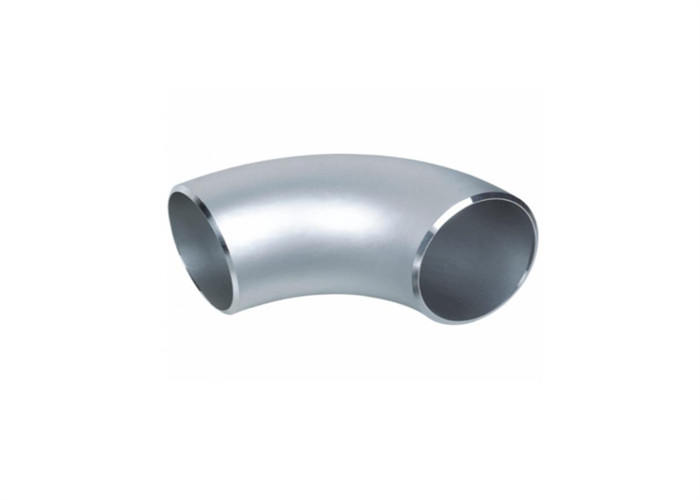

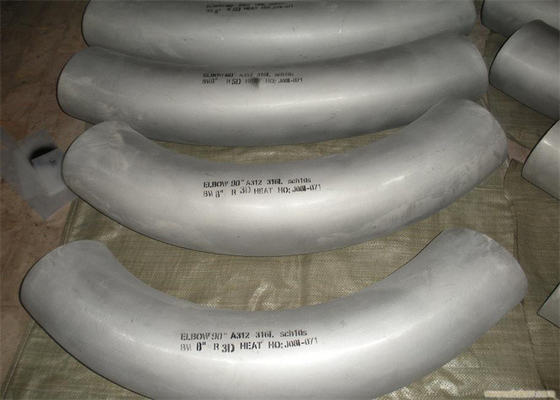

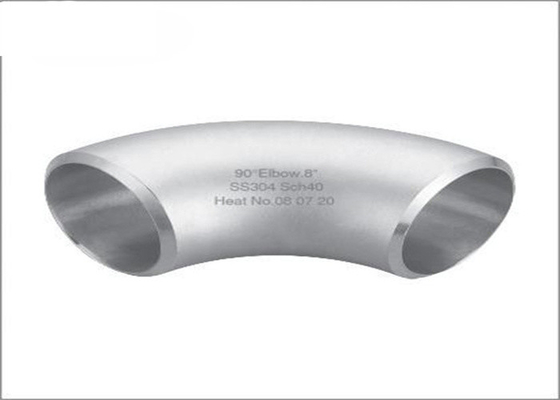

Stainless Steel Elbow Butt Weld Pipe Fittings 304 Stainless Steel SCH10S SCH40S STD BW LR Long Radius 90 Degree Elbow
Stainless steel elbow is different from carbon steel elbow, which is mainly made of materials. Its chemical composition will keep the curved surface for a long time without rust and will not be corroded.
The use and maintenance of the stainless steel elbow requires a lot of attention, which requires users to use it according to certain methods, and use and maintain in accordance with accurate and reasonable methods.
| Brand Name | AUTHENTIC | |
| Product Name | Elbow | |
| Certification | /BV/ABS/LR/TUV/DNV/BIS/API/PED | |
| Place of Origin | Cangzhou China (Mainland) | |
|
Material |
ASTM |
Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
|
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
| Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
|
DIN |
Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
|
JIS |
Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
|
GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
|
| Standard Specification | ASTM,JIS,BS,DIN,UNI etc. | |
| Connection | Welding | |
| Shape | Equal | |
| Technics | Forged | |
| Qualification | ISO9001, API,CE | |
| Equipment | Pushing Machine,Beveling Machine,Sand Blasting Machine | |
| Thickness | Sch10-Sch160 XXS | |
| Size | Seamless 1/2" To 24" Welded 24" To 72" | |
| Surface of Finish | Antirust Oil,Hot Galvanized | |
| Pressure | Sch5--Sch160,XXS | |
| Standard | ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2 | |
Cangzhou Authentic FITTINGS manufacturing co.,ltd. is a professional pipe fittings manufacturer, located in Donghe Industrial Zone, Mengcun Hui Autonomous County, Cangzhou City, Hebei Province, covering an area of 40000 square meters.The company was registered and established on July 12, 2007.
We have also achieved PED,AD 2000-Merkblatt W0,ABS,ISO,GOST API 5L approved.
Quality is our top most priority. Over the years, we have worked to solve problems previously associated with our fittings and have improved product designs for better performance. A strict quality management system is implemented to control each phase of production. The quality of our products is also guaranteed by our advanced production equipment. These help us save raw materials, shorten production time and reduce production costs. Being of excellent quality and reasonable prices, our products are well received in many countries such as UK, Italy, Germany, the United States, Canada, Chile, Bolivia, United Arab Emirates, Brazil and so on.
Quality is our top most priority. Over the years, we have worked to solve problems previously associated with our fittings and have improved product designs for better performance. A strict quality management system is implemented to control each phase of production. The quality of our products is also guaranteed by our advanced production equipment. These help us save raw materials, shorten production time and reduce production costs. Being of excellent quality and reasonable prices, our products are well received in many countries such as UK, Italy, Germany, the United States, Canada, Chile, Bolivia, United Arab Emirates, Brazil and so on.
