Product Details:
|
| Material: | Carbon Steel | Type: | Threaded Flange |
|---|---|---|---|
| Standard: | DIN, ANSI, GB, JIS, BSW, ASTM | Application: | Water, Gas, Pump |
| Color: | As Per Customer Requirement, Gold | Surface: | Galvanized,Black,Yellow,Rust-proof Oil,Oiled |
| Highlight: | ASME 16.5 Carbon Steel Flange,ASME 16.5 threaded steel flange,Carbon Steel Flange Galvanized Surface |
||

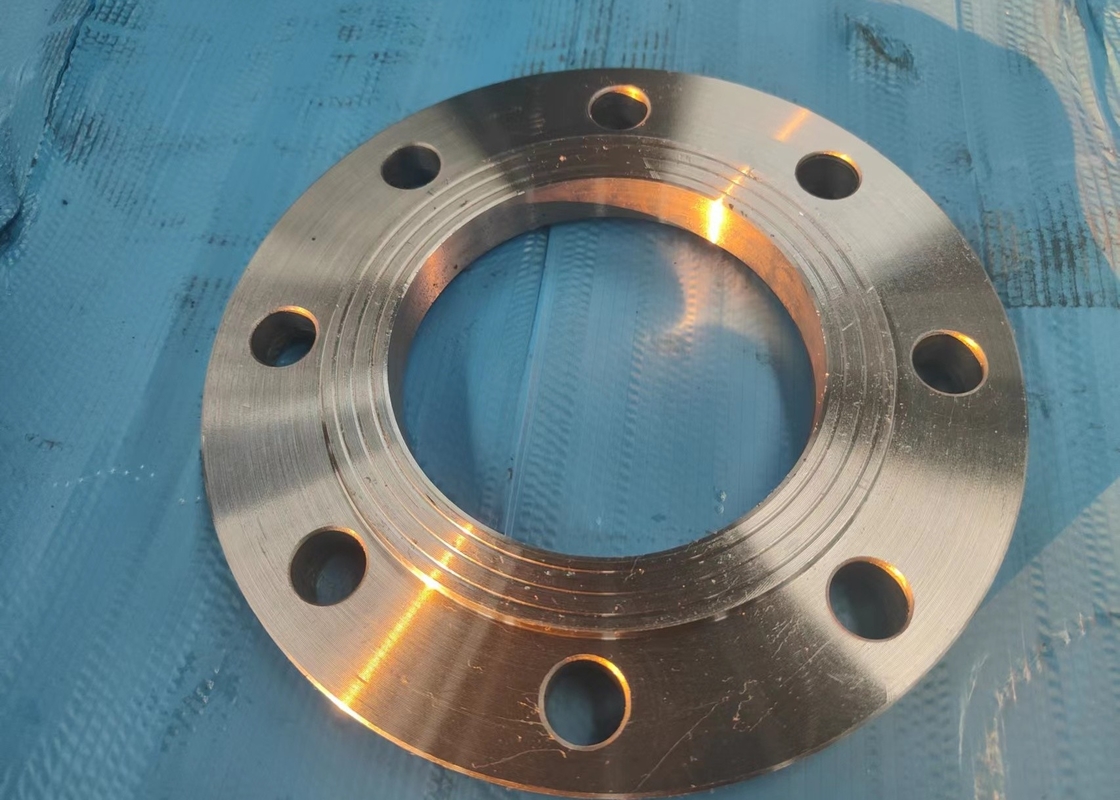

Carbon Steel Forged Flange Slip On Weld Neck Pn16 DN 100 Gost 12820 With Anti-rust Oil
Carbon steel flange is the connection for two pipes, fittings or equipment. First, fixing on a flange, between the two flanges, plus the flange gasket, bolt fastening together to complete the connection. Some pipe fittings and equipment with flange themselves, is also belongs to the flange connection. Flange connection is an important connection mode of pipeline construction. Flange connection is convenient to use, can withstand greater pressure. In industrial piping, within families, pipe diameter is small, and it is low pressure, the flange connection is invisible. If in a boiler room or production site, the flange connection of pipes and equipment are everywhere
Slip-on flange is positioned so the inserted end of the pipe or fitting is set short of the flange face by the thickness of the pipe wall plus 1/8 of an inch, which thus allows for a fillet weld inside the SO flange equal without doing any damage to the flange face. The back or outside of the slip-on flange or SO flange is also welded with a fillet weld.
| flange Materials |
Carbon Steel: ASTM A105,ASTM A350 LF1, LF2, CL1/CL2, A234, S235JRG2, P245GH P250GH, P280GHM 16MN, 20MN ,20# ,etc . |
Low Temp Carbon steel (A350 LF2 ,A350 LF3) |
|
Stainless Steel: ASTM A182, F304/304L, F316/316L |
|
Duplex stainless steel (A182 F51/UNS 31803 , F53/UNS 32750, F55) |
|
Low alloy steel (A182 F1, F5,F9,F11, F12, F22) |
|
flange Standard |
ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES |
JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504 |
|
BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123 |
|
GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES |
|
| flange Types |
Slip On Flange |
150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5 |
|
PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI |
|
PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504 |
|
PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80 |
|
PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80 |
|
600kPa, 1000.1600.2500.4000.-SANS 1123 |
|
5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503 |
|
TABLE D, TABLE E ,TABLE F-BS 10, AS2129 |
|
CLASS D, CLASS E, CALSS F, AWWA C207 |
|
| steel flange Surface |
Rust Preventing Oil/ Antirust Oil |

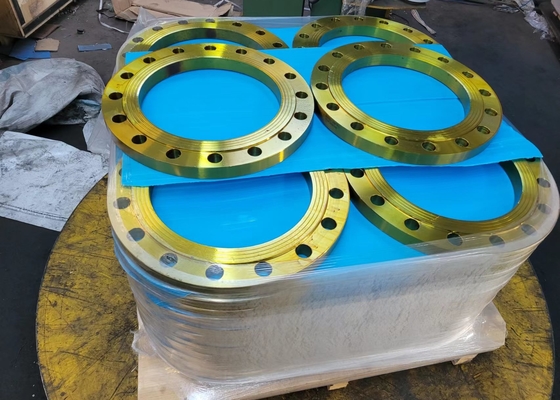

Black/Yellow/Golden Coating (Water-Based Paint) Varnish Paint Coating Varnish Oil Coating |
|
Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white) Hot Dip Galvanizing |
|
| flange Technique |
Forging |
Heat Treatment: Annealing Quenching and tempering Precipitation/Selective/Case Harding |
