Product Details:
|
Product: | Socket Weld Flange | Material: | Carbon Steel,Stainless Steel, Alloy Steel |
---|---|---|---|
Surface Treatment: | Anti Rust Oil,varnish Painted On Surface,hot Galvanized | Application: | Aerospace, Pharmaceutical, Oil And Gas |
Package: | Wooden Case, Wooden Pallet | Payment: | TT |
High Light: | weld asme b16 5 stainless steel flange,aerospace asme b16 5 stainless steel flange,aerospace stainless steel socket weld flange |

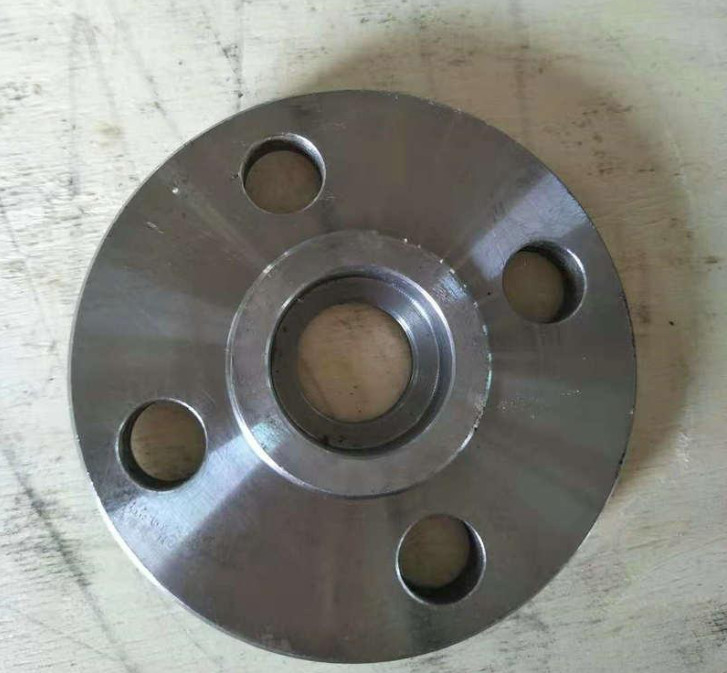

ASME B16.5 Stainless Steel Flange Socket Weld Welding Flange
Socket welding flange refers to the flange in which the end of the pipe is inserted into the flange ring step, and the flange is welded on the pipe end and the outside. There are two types with and without neck. The flange with neck tube has good rigidity, small welding deformation and good sealing performance, and can be used in the occasions where the pressure is 1.0~10.0MPa. Type B flanges for containers are also socket welding flanges, which are used in occasions with high sealing requirements. When designing, the socket welding flange can be checked according to the integral flange.
Brand Name | AUTHENTIC | |
Product Name | Socket Weld Flange | |
Certification | /BV/ABS/LR/TUV/DNV/BIS/API/PED | |
Place of Origin | Cangzhou China (Mainland) | |
Material |
ASTM |
Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
DIN |
Carbon steel:St37.0,St35.8,St45.8 | |
Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
JIS |
Carbon steel:PG370,PT410 | |
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
Standard Specification | ASTM,JIS,BS,DIN,UNI etc. | |
Connection | Weld | |
Shape | Equal | |
Technics | Forged | |
Qualification | ISO9001, API,CE | |
Equipment | Pushing Machine,Beveling Machine,Sand Blasting Machine | |
Thickness | Sch10-Sch160 XXS | |
Size | 3/8"-30" | |
Surface of Finish | Antirust Oil,Hot Galvanized | |
Pressure | Sch5--Sch160,XXS | |
Standard | ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2 | |
The third party inspection | BV, , LOIYD, TUV, and other party alloyed by clients. | |
Remark | Also can supply IBR fittings and Specialized NACE & HIC Fittings | |
Marking | Registered logo,Heat Number,Steel Grade,Standard,Size | |
Supply Ability | 3,0000pcs per month | |

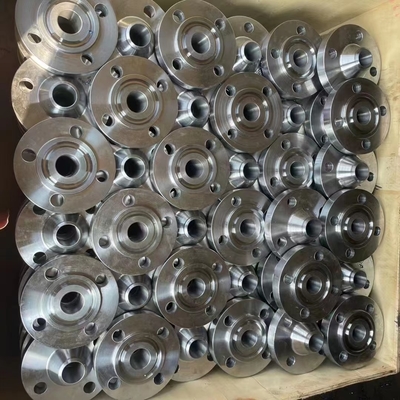

Packing | PLY-wooden case or pallet or as for clients' requirements | |
Application | Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, | |
Advantages |
1. 20 + years of production experience at your service. 2. The fastest delivery 3. The lowest price 4. Most comprehensive standards and materials for your choice. 5. 100% export. 6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc. |
|
Special design available as the requirement of customer |
About Us:
Cangzhou Authentic Pipe fitting Manufacturing Co., Ltd., which specialize in the manufacture and export of Pipe
fittings for 20 years. Our products is covering ELBOW, FLANGE,TEE, REDUCER, CAP and steel pipes, our material
is including carbon steel , stainless steel, alloy steel with black painting and am anti-rust oil.
We also have ISO, PED ,GOST and API certificates to make sure our quality, our goods is sold to Europe, Southeast ,East
Europe and many other countries.
Our Certificate:
FAQ:
1. Are you trading company or manufacturer ?
We are manufacturer
2. How long is your delivery time?
Generally it is 10-15 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Paymen 30% T/T pay in advance , the balance should be paid against the copy of B/L
