Product Details:
|
| Material: | Carbon Steel Q235， Steel 20#， 16Mn | Surface: | Bare, Black Painting, Tranparent Oil |
|---|---|---|---|
| Connection: | Butt Welding | Standand: | ASTM /ANSI/DIN/GOST/EN |
| Product: | CON Reducer ECC Reducer | Wall Thickness: | Sch10-Sch160 XXS |
| Technique: | Froged, Forged, Advanced, Forged Casting | Producce Ability: | 400 Tons Per Month |
| Highlight: | sch10 carbon steel reducer,butt welding carbon steel reducer,sch10 carbon steel concentric reducer |
||

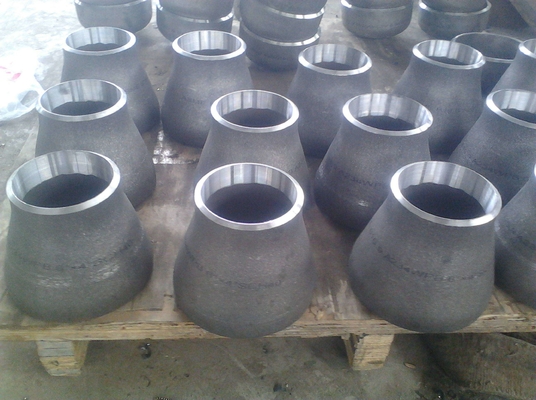

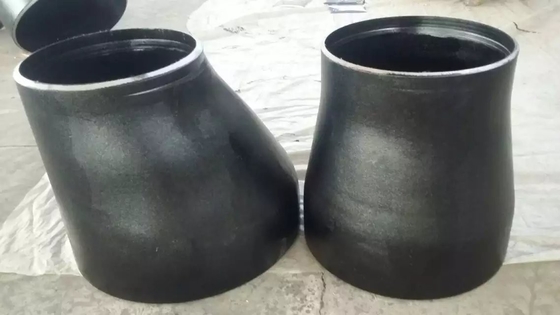

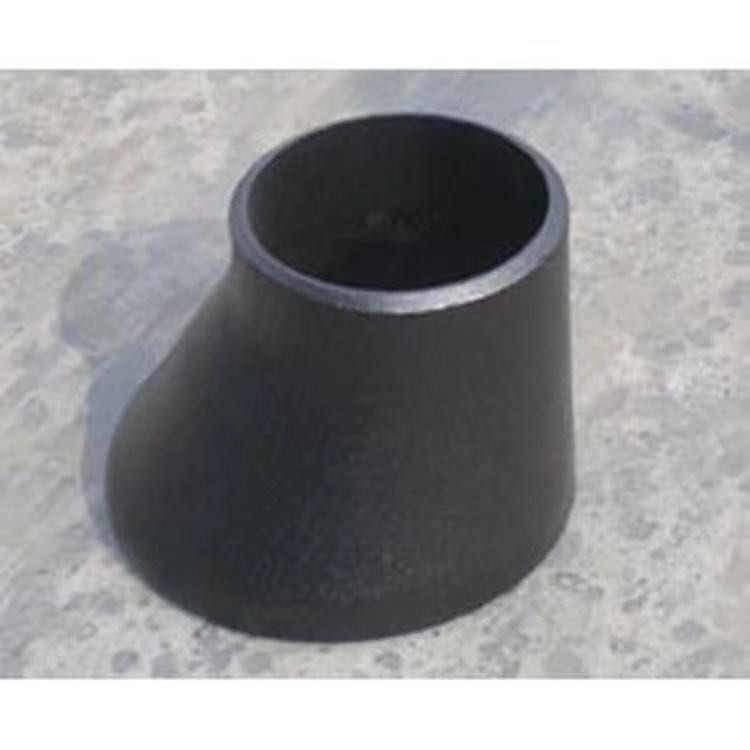

20#, 16Mn, Q235 CON REDUCER AND ECC REDUCER, CARBON STEEL REDUCER
The difference between concentric and eccentric reducer is the different installation location choice. Depending on the medium flow direction and location to determine, in a few words, does not say a general principle: pipe gas phase medium produces liquid. Liquid medium will produce gas, concentric reducer and eccentric reducer differences is that both reach the purpose of the variable diameter; And achieve the goal of the discharged liquid or gas. So according to your technical requirements come in the direction of the liquid or gas to choose concentric reducer and eccentric reducer.
Reducer is generally not with one-way compensator connected directly, after the variable diameter plus fixed bracket and then install compensator; But due to the limited factors can also be connected directly, fixed bracket near the size of the head as far as possible.
| Size | Customized Size, 1/2''-72', Refer to products specification, 1/8"-2", DN10~DN1200 |
| Material |
ASTM: Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, DIN: Carbon steel:St37.0,St35.8,St45.8 Stainless steel:1.4301,1.4306,1.4401,1.4571 Alloy steel:1.7335,1.7380,1.0488(1.0566) GB: 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, |
| Surface Treatment | mirror polished, galvanizing, Hot Galvanized /Electrical/Black, Cr+3/ Cr+6 zinc plating, rust-proof oil |
| Inspection | Chemical Elements； Mechanical Property； Metallographic Test,； HIC /SSC,； Heat Treatment,； Ultrasonic Test； Penetration Test； Magnetic Powder Test； X-Ray Test； Hydraulic Pressure Test； Blasting Experiment；we can make them according to your request. |
| Producing Technic | Forged, Casting, Heat treatment , welding, Seamless |
| Remarks | Our company can produce customized products according to customer requirements |
| Product | Reducer |
| Type | Seamless reducer,Welded reducer Concentric reducer,Eccentric reducer Butt welding reducer,Forged reducer |
| Size | DN15-DN1200 |
| Material | Carbon Steel: ASTM A234 WPB,A420 WPL6, WPL3;A105 WPB; A106;A350 LF2,A333 GR.6,API 5L GRB, X60, X65, X42,X52, A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46, WPHY 42,DIN St37, St45.8, St52.4,St.35.8,St.35.8, |
| Alloy Stee: 15CrMo, 12Cr1MoV, ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91 etc. |
|
| Stainless Steel: ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321 ASTM A182 F 304, 304L,316, 316L,904L |
|
| Wall Thickness | STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
Standards |
ANSI B16.9, EN10253-2, DIN2616, GOST17378, JIS B2313, MSS SP 75, etc. |
| Inspection | Optical Spectrometer X-ray Detector QR-5 Fully Automatic Computer Carbon Sulfur Analyzer Measurement Tensile Test Finished Product NDT UT(Digital UItrasonic Flaw Detector) Metallographic Analysis Imaging Studies Magnetic Particle Inspection |
| Application | Water Disposal; Electric Power; Chemical Engineering; Ship Building; Nuclear Energy; Garbage Disposal; Natural Gas; Petroleum Oil |
| Delivery Time | Within 30-45 days after receiving the deposit |
| Packing | Seaworthy package Wooden Cases Pallet or as per customers requiremen |
