Product Details:
|
| Product: | Threaded Flange | Material: | Carbon Steel，Stainless Steel, Alloy Steel |
|---|---|---|---|
| Surface Treatment: | Anti Rust Oil,varnish Painted On Surface,hot Galvanized | Application: | Aerospace, Pharmaceutical, Oil And Gas |
| Thickness: | SCH10 SCH20 SCH40 XS XXS STD | Payment: | TT |
| Highlight: | std 304 threaded flange,pharmaceutical 304 threaded flange,stainless steel 1.4306 flange |
||

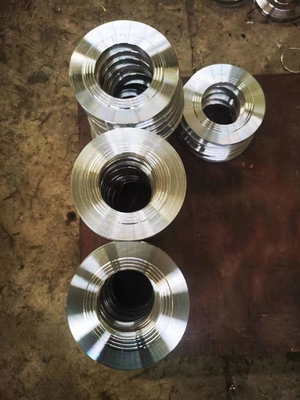

ASME B16.9 Carbon Stainless Alloy Steel Forged Threaded Flange DIN ANSI JIS GOST

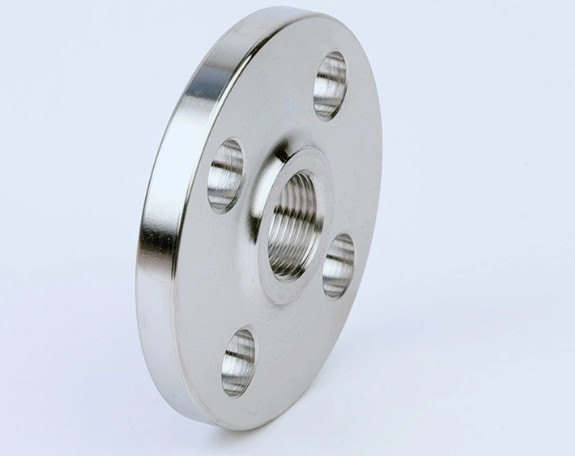

Threaded flange refers to a kind of flange that uses threads to connect with pipes. When designing, it can be handled as a loose flange. The advantage is that there is no need for welding, and the additional moment to the cylinder or pipe when the flange is deformed is very small. The disadvantage is that the flange thickness is large and the cost is high. Suitable for connection of high pressure pipelines. Threaded flange is a kind of non-welded flange, which processes the inner hole of the flange into pipe threads, and is matched with the threaded pipe to realize the connection. Compared with the flat welding flange or the butt welding flange, the threaded flange has the characteristics of convenient installation and maintenance, and can be used on some pipelines where welding is not allowed. Alloy steel flanges have sufficient strength, but are not easy to weld, or the welding performance is not good, and threaded flanges can also be selected. However, when the temperature of the pipeline changes rapidly or the temperature is higher than 260°C and lower than -45°C, it is recommended not to use threaded flanges to avoid leakage.
| Brand Name | AUTHENTIC | |
| Product Name | Threaded Flange | |
| Certification | /BV/ABS/LR/TUV/DNV/BIS/API/PED | |
| Place of Origin | Cangzhou China (Mainland) | |
|
Material |
ASTM |
Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
|
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
| Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
|
DIN |
Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
|
JIS |
Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
| Standard Specification | ASTM,JIS,BS,DIN,UNI etc. | |
| Connection | Welding | |
| Shape | Equal | |
| Technics | Forged | |
| Qualification | ISO9001, API,CE | |
| Equipment | Pushing Machine,Beveling Machine,Sand Blasting Machine | |
| Thickness | Sch10-Sch160 XXS | |
| Size | Seamless 1/2" To 24" Welded 24" To 72" | |
| Surface of Finish | Antirust Oil,Hot Galvanized | |
| Pressure | Sch5--Sch160,XXS | |
| Standard | ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2 | |
| The third party inspection | BV, , LOIYD, TUV, and other party alloyed by clients. | |
| Remark | Also can supply IBR fittings and Specialized NACE & HIC Fittings | |
| Marking | Registered logo,Heat Number,Steel Grade,Standard,Size | |
| Supply Ability | 3,0000pcs per month | |
| Packing | PLY-wooden case or pallet or as for clients' requirements | |
| Application | Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, | |
|
Advantages |
1. 20 + years of production experience at your service. 2. The fastest delivery 3. The lowest price 4. Most comprehensive standards and materials for your choice. 5. 100% export. 6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc. |
|
| Special design available as the requirement of customer |
||
About Us:
Cangzhou Authentic Pipe fitting Manufacturing Co., Ltd., which specialize in the manufacture and export of Pipe
fittings for 20 years. Our products is covering ELBOW, FLANGE,TEE, REDUCER, CAP and steel pipes, our material
is including carbon steel , stainless steel, alloy steel with black painting and am anti-rust oil.
We also have ISO, PED ,GOST and API certificates to make sure our quality, our goods is sold to Europe, Southeast ,East
Europe and many other countries.
Our Certificate:
1. Are you trading company or manufacturer ?
We are manufacturer
2. How long is your delivery time?
Generally it is 10-15 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Paymen 30% T/T pay in advance , the balance should be paid against the copy of B/L
