304 Stainless Steel Flanges ANSI GB JIS DIN ASTM Class 150
| MOQ: | 100KGS |
| Price: | Negotation |
| Standard Packaging: | They are usually packed in conventional export wooden cases. |
| Delivery Period: | 2-10 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 2000tons/per month |
Detail Information
Place of Origin
China
Brand Name
Yuhao
Certification
ISO, API, BV, CE ...
Model Number
flanges
Material:
304, 304L, 316, 316L
Application:
Connection, Decoration, Oil And Gas, Automative, Shipbuilding, Construction, Petrochemical, Chemical
Standard:
ASTM, ANSI, GB, JIS, DIN
Shape:
Raising Face, Flat Face, Tongue Face
Package:
Standard Seaworthy Packagel, Wooden Cases...
Certification:
ISO, API, BV, CE ...
Connection:
Welding
Pressure:
Class150/300/600/9001500/2500
Type:
Pipe Fitting
Brand Name:
Yuhao
Highlight:
304 Stainless Steel Flanges
,Stainless Steel Flanges ANSI
,Class 150 stainless steel flange fittings
Product Description
ASTM, ANSI, GB, JIS, DIN Class150 Plate 304 Stainless Steel Flanges
Product Specifications
| Attribute | Value |
|---|---|
| Material | 304, 304L, 316, 316L |
| Application | Connection, Decoration, Oil and Gas, Automotive, Shipbuilding, Construction, Petrochemical, Chemical |
| Standard | ASTM, ANSI, GB, JIS, DIN |
| Shape | Raising face, Flat face, Tongue face |
| Package | Standard Seaworthy Packaging, wooden cases |
| Certification | ISO, API, BV, CE |
| Connection | Welding |
| Pressure | Class150/300/600/900/1500/2500 |
| Type | Pipe Fitting |
| Brand Name | Yuhao |
Product Description
Plate Flanges in 304/316 stainless steel are flat, plain welding flanges designed for seamless integration into piping systems. Compliant with ASTM, ANSI, GB, JIS, and DIN standards, they ensure global compatibility and high performance. These flanges offer excellent corrosion resistance, durability, and ease of installation, making them ideal for industrial applications in chemical, oil, gas, and water systems.
Product Dimensions
| DN | Pipe OD | Connection Size | Flange Thickness (mm) | Flange ID | Flange OD | Bolt Hole Circle Diameter |
|---|---|---|---|---|---|---|
| 10 | 17.2 | 14 | 14 | 15 | 90 | 60 |
| 15 | 21.3 | 18 | 14 | 19 | 95 | 65 |
| 20 | 26.9 | 25 | 16 | 26 | 105 | 75 |
| 25 | 33.7 | 32 | 16 | 33 | 115 | 85 |
| 32 | 42.4 | 38 | 18 | 39 | 140 | 100 |
| 40 | 48.3 | 45 | 18 | 46 | 150 | 110 |
| 50 | 60.3 | 57 | 19 | 59 | 165 | 125 |
| 65 | 76.1 | 76 | 20 | 78 | 185 | 145 |
| 80 | 88.9 | 89 | 20 | 91 | 200 | 160 |
| 100 | 114.3 | 108 | 22 | 110 | 220 | 180 |
| 125 | 139.7 | 133 | 22 | 135 | 250 | 210 |
| 150 | 168.3 | 159 | 24 | 161 | 285 | 240 |
| 200 | 219.1 | 219 | 24 | 222 | 340 | 295 |
| 250 | 273 | 273 | 26 | 276 | 395 | 350 |
| 300 | 323.9 | 325 | 26 | 328 | 445 | 400 |
| 350 | 355.6 | 377 | 28 | 381 | 505 | 460 |
| 400 | 406.4 | 426 | 32 | 430 | 565 | 515 |
| 450 | 457 | 480 | 36 | 485 | 615 | 565 |
| 500 | 508 | 530 | 38 | 535 | 670 | 620 |
| 600 | 610 | 630 | 42 | 636 | 780 | 725 |

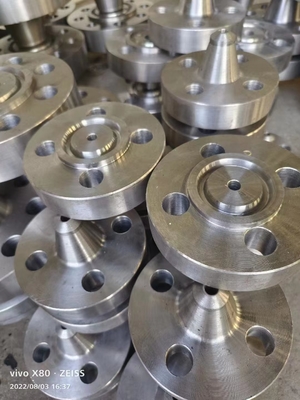

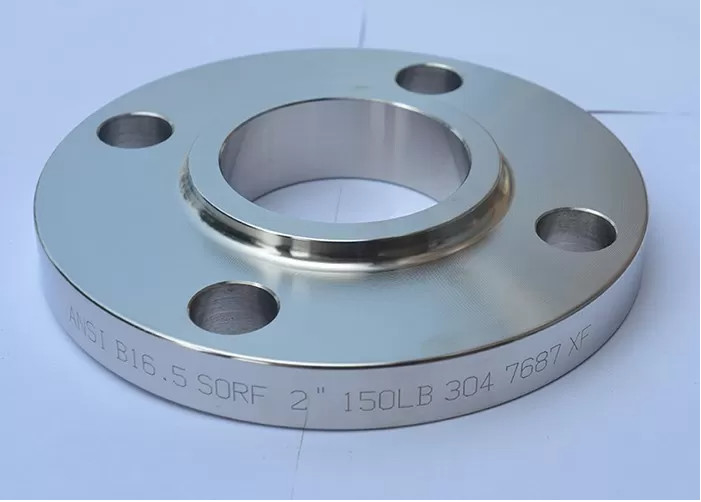

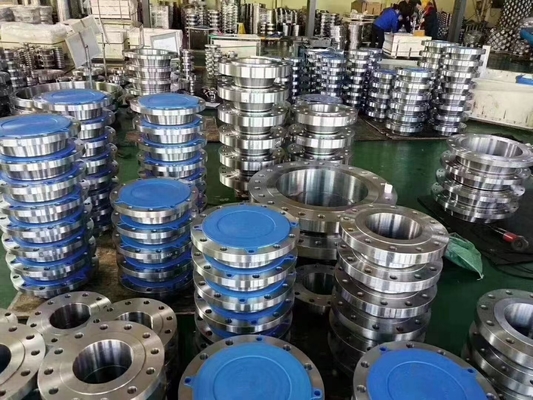

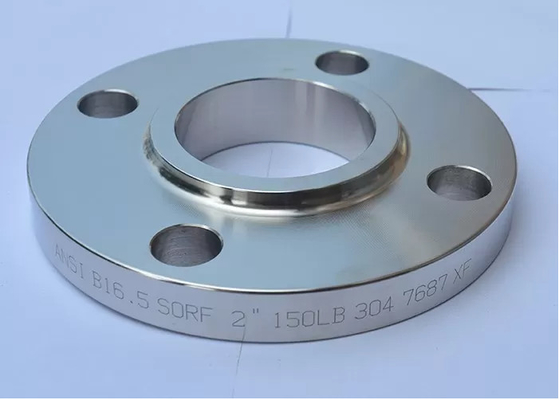

Product Images
Frequently Asked Questions
Q1: What is the delivery time?
A: 1-7 days for small orders, 10-20 days for large orders.
Q2: What products and services do you supply?
A: We supply various metal raw materials and products including pipes, pipe fittings, flanges, coils, sheets, round bars, and more.
Q3: How is the product quality ensured?
A: Quality is our priority. Every product undergoes thorough assembly and testing before packaging and shipment.
Q4: Do you provide samples? Are they free?
A: Yes, we provide free samples but customers must cover the shipping costs.
Q5: What is your production lead time?
A: Typically 5-10 days for in-stock items, or 15-20 days for out-of-stock items, depending on quantity.
