Product Details:
|
Name: | Flat Flange | Pressure: | PN6 PN10 PN16 PN25 |
---|---|---|---|
SIZE: | Dn15-dn1000 | Material: | Steel 20,16Mn SS304 |
Form: | Forged,cast Iron | Package: | Wooden Case Or Pallet |
Type: | Blind,weld Neck Flange | Standard: | ANSI,DIN,JIS,BS,ASME |
High Light: | asme forged carbon steel flange,dn100 forged carbon steel flange,pn100 carbon steel weld neck flange |

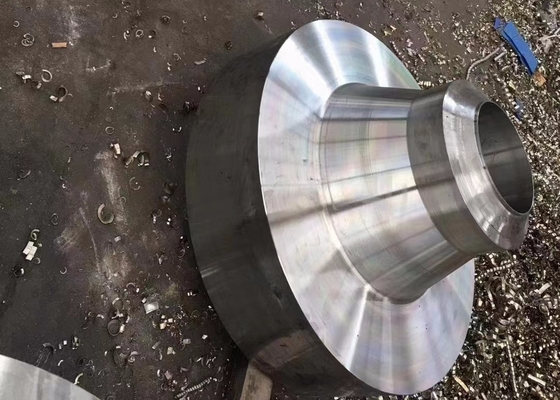

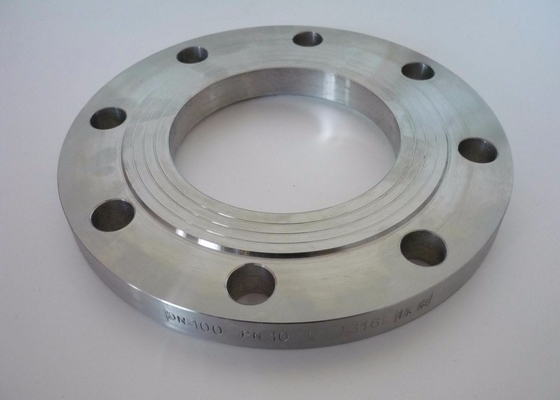

Pn100 DN100 Flat Slip On Forged Carbon Steel Flange Raised face weld neck flange
Carbon steel flange, that is, the body material is carbon steel flange or end flange connector. The flange containing carbon steel material is called carbon steel flange. Common materials are cast carbon steel WCB, forgings A105, or Q235B, A3, 10#, #20 steel, 16 manganese, 45 steel, Q345B and so on.
Usually to prevent rusting flange surface with electroplating (yellow zinc, white zinc, etc.), or brush anti-rust oil and spraying anti-rust paint treatment.
The carbon steel flanges can be used in the medium of suspended solid particles due to the wipes during the opening and closing process. The model Q41F--16C Q41F--25C American standard A105 (standard is 1.05Max with carbon decrease to 1.65% Max), the 16Mn content of gb is about 1.3% (1.2 % ~ 1.6%) and the S25C is below 0.6 %.
Porduct Name
|

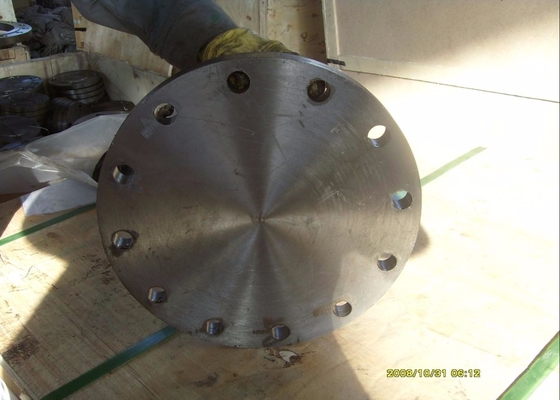

weld neck flange, slip on flange, blind flange, tube sheet, threaded flange,
socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange. (En1092-1 PN10 PN16 DN100 DN800 Plate Steel Stainless Steel Flange) |
Material | WCB,LCB,LC3,WC5,WC9,C5,C12,CA6NM(4,CA15(4),CF8M,CF8C,CF8,CF3,CF3M,CN7M,M35-1,N7M,CW6M,CY40 ss304 st.20 |
OD
|
15mm-2000mm DN15-DN1200
|
Pressure
|
150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000 PN6 PN10 PN16 PN25
|
Standard
|
ANSI B16.5,EN1092-1, EN10253, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc.
|
Wall thickness
|
SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60,
SCH80, SCH160, XXS and etc. |
Advantage
|
|
ready stock,faster delivery time;available in all sizes,customized;high quality
|
|
About Us:
Cangzhou Authentic Pipe fitting Manufacturing Co., Ltd., which specialize in the manufacture and export of Pipe fittings for 20 years. Our products is covering ELBOW, FLANGE,TEE, REDUCER, CAP and steel pipes, our material is including carbon steel , stainless steel, alloy steel with black painting and am anti-rust oil.
We also have ISO, PED and API certificates to make sure our quality, our goods is sold to Europe, Southeast ,East Europe and many other countries.
