Product Details:
|
Material: | Stainless Steel,Stainless/alloy Steel | Shape: | Equal |
---|---|---|---|
Connection: | Welding,Female,weld | Technics: | Forged,seamless |
Type: | Elbow,seamless,welding | Surface Treatment: | Mirror Polished,High Polished,Sand Blasting |
Size: | Customized Size,1/2"-80" | Standard: | DIN,ANSI / ASME |
Name: | 30 Degree Steel Pipe Elbow,elbow/bend,90 Degree Elbow,304 Stainless Steel Ferrule Right-angle Elbow | Application: | Connect Pipes,oil Pipelines,Industry |
Usage: | Oil Gas Water Industrial,industrial,Joining Pipe Lines | Surface: | As Customer's Requirement,Polish Finish |
Thickness: | Sch10-xxs(2-60mm),SGP,DIN,standard Schedule,1mm - 3mm | ||
Highlight: | 48" Stainless Steel Elbow,Stainless Steel Elbow 90D LR,48" stainless steel 45 degree elbow |

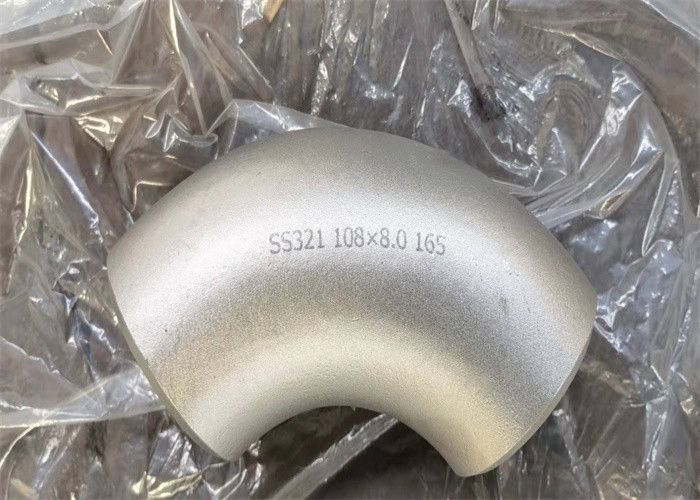

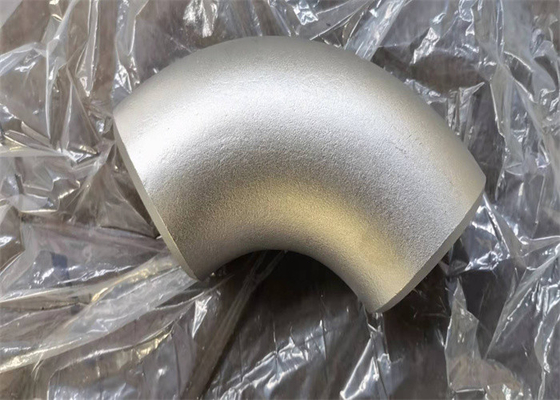

Stainless Steel Elbow Stainless Steel Elbow 90D LR GOST SS321 1/2"-48" Steel Color Butt welding with pipes
Buttweld pipe fittings comprises of long radius elbow, concentric reducer, eccentric reducers and Tees etc. Butt weld stainless steel and carbon steel fittings are an important part of industrial piping system to change direction, branch off or to mechanically join equipment to the system. Buttweld fittings are sold in nominal pipe sizes with specified pipe schedule. BW fitting’s dimensions and tolerances are defined as per ASME standard B16.9.
Brand Name | AUTHENTIC | |
Product Name | Elbow | |
Certification | /BV/ABS/LR/TUV/DNV/BIS/API/PED | |
Place of Origin | Cangzhou China (Mainland) | |
Material |
ASTM |
Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
DIN |
Carbon steel:St37.0,St35.8,St45.8 | |
Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
JIS |
Carbon steel:PG370,PT410 | |
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
|
Standard Specification | ASTM,JIS,BS,DIN,UNI etc. | |
Connection | Welding | |
Shape | Equal | |
Technics | Forged | |
Qualification | ISO9001, API,CE | |
Equipment | Pushing Machine,Beveling Machine,Sand Blasting Machine | |
Thickness | Sch10-Sch160 XXS | |
Size | Seamless 1/2" To 24" Welded 24" To 72" | |
Surface of Finish | Antirust Oil,Hot Galvanized | |
Pressure | Sch5--Sch160,XXS | |
Standard | ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2 | |
The third party inspection | BV, , LOIYD, TUV, and other party alloyed by clients. | |
Remark | Also can supply IBR fittings and Specialized NACE & HIC Fittings | |
Marking | Registered logo,Heat Number,Steel Grade,Standard,Size | |
Minimum Order Quantity | 1pcs | |
Supply Ability | 3,0000pcs per month | |
Price | Depending on quantity | |
Payment Terms | T/T or Western Union or LC | |
Supply Ability | 3,0000pcs per month | |
Delivery Time | 10-50 days depending on quantity | |

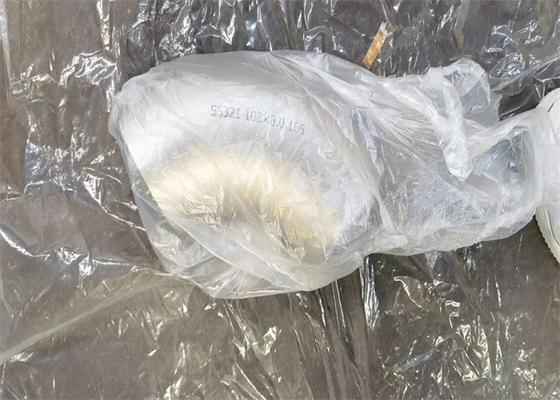

Packing | PLY-wooden case or pallet or as for clients' requirements | |
Application | Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, | |
Advantages |
1. 20 + years of production experience at your service. 2. The fastest delivery 3. The lowest price 4. Most comprehensive standards and materials for your choice. 5. 100% export. 6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc. |
|
Special design available as the requirement of customer |
Butt welded Pipe fittings such as carbon steel and stainless steel offer many advantages compared to threaded and socketweld fittings. The later are only available up to 4-inch nominal size whereas butt weld fittings are available in sizes from ½” to 72”. Some of the benefits of weld fittings are;
All buttweld pipe fittings have beveled ends as per ASME B16.25 standard. This helps create full penetration weld without any extra preparation needed for the butt weld fitting.
Butt weld pipe fittings are most commonly available in carbon steel, stainless steel, nickel alloy, aluminum and high yield material. High yield butt weld carbon steel pipe fittings are available in A234-WPB, A234-WPC, A420-WPL6, Y-52, Y-60, Y-65, Y-70. All WPL6 pipe fittings are annealed and are NACE MR0157 and NACE MR0103 compatible.
About Us:
Cangzhou Authentic Pipe fitting Manufacturing Co., Ltd., which specialize in the manufacture and export of Pipe fittings for 20 years,Covers an area of 100,000 square meters,among them there are the building area of 50,000 square meters. Our products is covering ELBOW,FLANGE,TEE, REDUCER, CAP and steel pipes, our material is including carbon steel , stainless steel, alloy steel with black painting and am anti-rust oil. We also have ISO, PED ,GOST and API certificates to make sure our quality, our goods is sold to Europe, Southeast ,East Europe and many other countries.
Our Certificate:
1. Are you trading company or manufacturer ?
We are manufacturer
2. How long is your delivery time?
Generally it is 10-15 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Paymen 30% T/T pay in advance , the balance should be paid against the copy of B/L
Contact Person: Susan
Tel: +8613111786679
Fax: 86-66-00302
