Product Details:
|
Model Number: | 180 Degree/ 90 Degree | Technics: | Seamless |
---|---|---|---|
Grade: | ASTM A234 | Standard: | ASME B16.9 |
Surface Treatment: | Sand Blasted, Black Painted, As Per Customer's Request | Shape: | Equal, 180 Degree |
Head Code: | Round | ||
High Light: | 3.91mm Butt Weld Pipe Elbow,3.91mm 180 Degree Pipe Elbow,sch40 Butt Weld Pipe Elbow |
Butt Weld Pipe Fittings ASME A234 WPB Carbon Steel Pipe Fittings Elbow ASME B16.9 90DEG 180 DEG ASTM A234 WPB
Pipe Fitting B16.9 Elbow ;Tee;Reducer;Cap;Sch40;Sch80;Black;Anti-Rust Oil
One of the most common methods for manufacturing elbows is using hot mandrel bending from straight steel pipes. After heating the steel pipe at a elevated temperature, the pipe is pushed, expanded, bend by the inner tools of mandrel step by step. Applying hot mandrel bending can manufacture a wide size range seamless elbow. The characteristics of mandrel bending are strongly depend on the integral shape and dimensions of the mandrel. The using advantages of hot bending elbows include smaller thickness deviation and stronger bending radius than other bending method type. Meanwhile, using bending instead of prefabricated bends substantially reduces the number of welds needed. This reduces the amount of work required and increases the quality and usability of pipes. However, cold bending is the process to bent the straight steel pipe at normal temperatures in a bending machine. Cold bending is suitable for pipes with an outer diameter of 17.0 to 219.1 mm, and wall thickness 2.0 to 28.0 mm. The recommended bending radius is 2.5 x Do. Normally at a bending radius of 40D. By using cold bending, we can get small radius elbows, but we need to pack the internals with sand to prevent wrinkling. Cold bending is a quick and inexpensive bending method. It is a competitive option for making pipelines and machine parts.
Product Description
Size | 1/2"-36" seamless, 26"-110" welded |
Standard | ANSI B16.9, EN10253-4, DIN, GOST, JIS B2313, MSS SP 75,non-standard, etc. |
Wall thickness | SCH5S, SCH10, SCH10S ,STD, XS, SCH40S, SCH80S, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS ,customized and etc. |

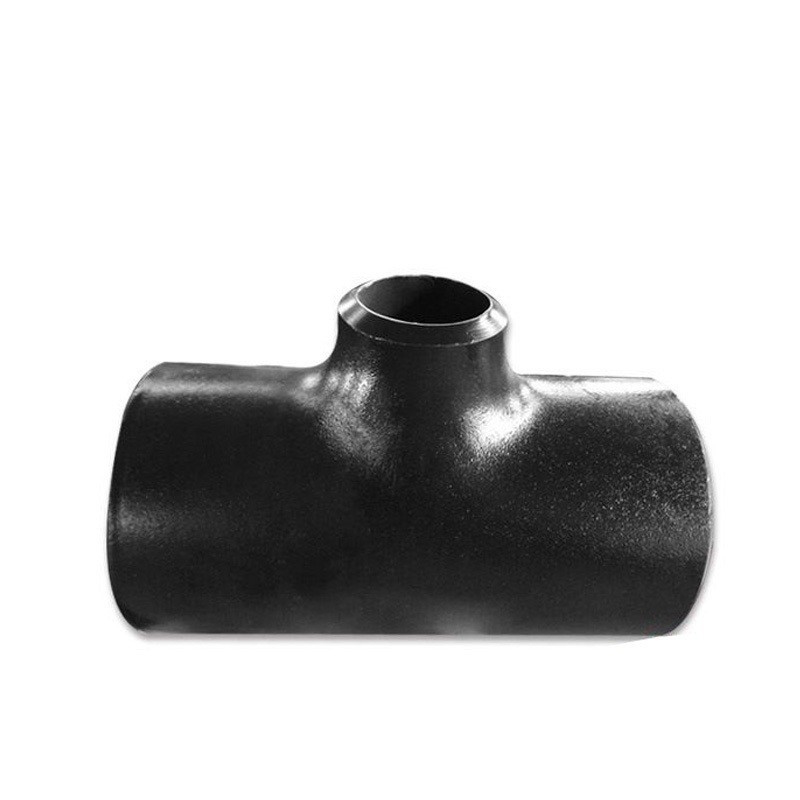

Type | Elbow, tee, bend, reducer, cap, stub end, etc. |
End | Bevel end/BE/buttweld |
Surface | pickled, sand rolling, polished, mirror polishing and etc. |
Material | Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S, A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc. |
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc. | |
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C-276,Monel400, Alloy20 etc. | |
Application | Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building; water treatment, etc. |
Advantages | ready stock,faster delivery time;available in all sizes,customized;high quality |
Elbow Type | Long radius elbow,Short radius elbow, 90 degree elbow, 45 degree elbow,180 degree elbow, reducing elbow. |
Standard |
ASME B16.9, ASME B16.11, ASME B16.5; JIS B2311,JIS B2312,JIS B2313,JIS B2316; MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2615 SY/T 0510, SH 3408, SH3410 |
Size | 1/2''-48''(Butt-welding and seamless);1/8''-4''(Threaded and socket-welding); 16''~72''(Welded) |
Wall thickness | SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH100,SCH120,SCH40,SCH160,XXS |
Manufacturing process | Hot forming, Push, Press, Forge, Cast, etc. |
Material
Carbon steel
Stainless steel
Alloy steel
Duplex steel
Nickel alloy steel |
Carbon steel elbow, stainless steel elbow, alloy steel elbow |
ASTM A234 WPB, ASTM A420 WPL6, WPL3; ASTM A105 WPB; ASTM A106; ASTM A350 LF2, DIN St37, St45.8, St52.4,St.35.8,St.35.8/I ASTM A333 GR.6, ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42, API 5L GRB, X60, X65, X42,X52, |
|
ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321 ASTM A182 F 304, 304L,316, 316L,904L |
|
ASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9 A420 WPL8, A420 WPL9 ASTM A335 P5, P9, P11, P12, P22, P91 ASTM A213 ASTM A182 F5,F11,F22,F91 |
|
ASTM A182 F51/SAF 2205/S31803,F53/SAF 2507/S32750,F60/UNS S32205, | |
Alloy 200/nickel 200/UNS S2200,Alloy 400/monel 400/UNS 4400,Alloy 600/Inconel 600/UNS 6600,Alloy 201/nickel 201/UNS S2201,Alloy 625/Inconel 625/UNS 6625/NS336,Alloy 800/Incoloy 800/UNS S8800, | |
Packing |
1)seaworthy wooden box for fittings with size from 1/2"~14" 2)Seaworthy wooden pallet for fittings with size above 14" 3)According to the packing requirement of clients |
Delivery time | with in 10-30 work days after received the deposit or L/C |
Shipment | FOB Tianjin, CFR, CIF, etc |
Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
Remarks | Other materials and drawings are available. |
