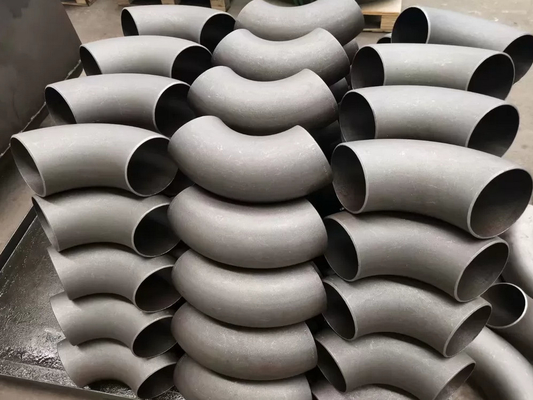

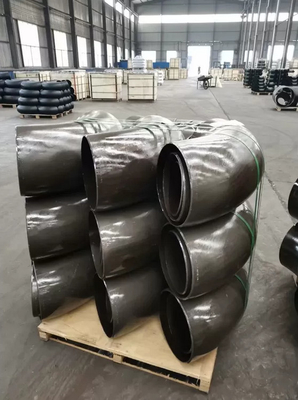

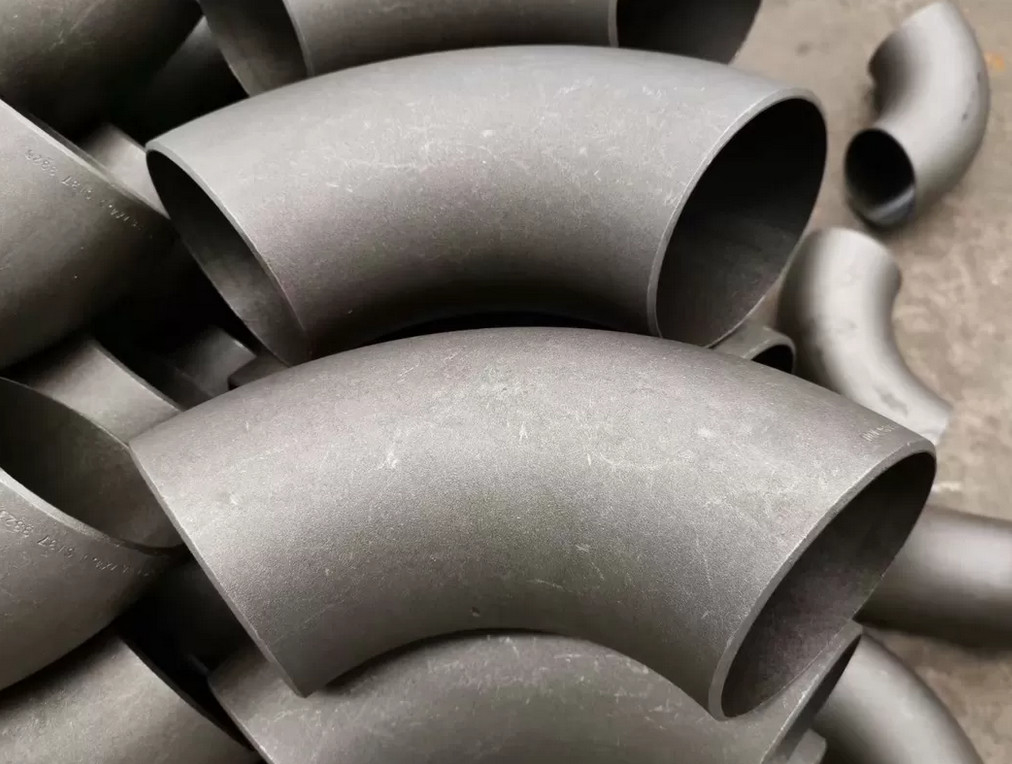

Product Details:
|
| Material: | Carbon Steel | Connection: | Carbon Steel And Stainless Steel Heat Forged |
|---|---|---|---|
| Type: | Elbow | Standard: | DIN,ASME/ANSI B16.9 |
| Surface Treatment: | Hot Galvanized/Light Oil/Black Painting | Color: | Black,Customer's Requirement,black Or Varnished |
| Highlight: | JIS2311 180 Degree Pipe Fitting,JIS2311 180 Degree Pipe Elbow,SS400 180 Degree Pipe Fitting |
||
1) Standard: JIS 2311
2) Materials: A234- ST 37 SS400
3) OD: 1/2" - 48".
4) WT: SGP
5) Surface: Painted with black paint (or varnish), galvanized,Light oil
6) Packaging: wooden case, pallet.
7) Inspection: water pressure test, X-ray inspection
JIS-B2311-B2312-SGP-ELBOW-BEND-DRAWING
| Nominal | OD | Center to End | 90˚Weight | 45 °Weight | ||||
| (NPS) | 90˚(F) | 45˚(H) | KG/PC | KG/PC | ||||
| A | B | D | Long | Shot | Long | Long | Short | LONG |
| 15 | ½ | 21.7 | 38.1 | - | 15.8 | 0.08 | 0.05 | 0.04 |
| 20 | ¾ | 27.2 | 38.1 | - | 15.8 | 0.1 | 0.07 | 0.05 |
| 25 | 1 | 34 | 38.1 | 25.4 | 15.8 | 0.15 | 0.1 | 0.08 |
| 32 | 1¼ | 42.7 | 47.6 | 31.8 | 19.7 | 0.26 | 0.17 | 0.13 |
| 40 | 1½ | 48.6 | 57.2 | 38.1 | 23.7 | 0.35 | 0.24 | 0.18 |
| 50 | 2 | 60.5 | 76.2 | 50.8 | 31.6 | 0.64 | 0.43 | 0.32 |
| 65 | 2½ | 76.3 | 95.3 | 63.5 | 39.5 | 1.12 | 0.75 | 0.56 |
| 80 | 3 | 89.1 | 114.3 | 76.2 | 47.3 | 1.58 | 1.05 | 0.79 |
| 90 | 3½ | 101.6 | 133.4 | 88.9 | 55.3 | 2.17 | 1.45 | 1.09 |
| 100 | 4 | 114.3 | 152.4 | 101.6 | 63.1 | 2.91 | 1.94 | 1.46 |
| 125 | 5 | 139.8 | 190.5 | 127 | 78.9 | 4.49 | 2.99 | 2.25 |
| 150 | 6 | 165.2 | 228.6 | 152.4 | 94.7 | 7.09 | 4.73 | 3.55 |
| 200 | 8 | 216.3 | 304.8 | 203.2 | 126.3 | 14.4 | 9.61 | 7.2 |
| 250 | 10 | 267.4 | 381 | 254 | 157.8 | 25.4 | 16.9 | 12.7 |
| 300 | 12 | 318.5 | 457.2 | 304.8 | 189.4 | 38.1 | 25.4 | 19.05 |
| 350 | 14 | 355.6 | 533.4 | 355.6 | 220.9 | 56.7 | 37.8 | 28.35 |
| 400 | 16 | 406.4 | 609.6 | 406.4 | 252.5 | 74.3 | 49.5 | 37.15 |
| 450 | 18 | 457.2 | 685.8 | 457.2 | 284.1 | 94.2 | 62.8 | 47.1 |
| 500 | 20 | 508 | 762 | 508 | 315.6 | 116 | 77.7 | 58 |
| 550 | 22 | 558.8 | 838.2 | 558.8 | 347.2 | 141 | 94.1 | 70.5 |
| 600 | 24 | 609.6 | 914.4 | 609.6 | 378.7 | 168 | 112 | 84 |
| 650 | 26 | 660.4 | 990.6 | 660.4 | 410.3 | 198 | 132 | 99 |
| 700 | 28 | 711.2 | 1066.8 | 711.2 | 441.9 | 230 | 154 | 115 |
| 750 | 30 | 762 | 1143 | 762 | 473.4 | 264 | 176 | 132 |
| 800 | 32 | 812.8 | 1219.2 | 812.8 | 505 | 301 | 201 | 150.5 |
| 850 | 34 | 863.6 | 1295.4 | 863.6 | 536.6 | 340 | 227 | 170 |
| 900 | 36 | 914.4 | 1371.6 | 914.4 | 568.1 | 380 | 253 | 190 |
| 950 | 38 | 965.2 | 1447.8 | 965.2 | 599.7 | 425 | 283 | 212.5 |
| 1000 | 40 | 1016 | 1524 | 1016 | 631.2 | 471 | 314 | 235.5 |
| 1050 | 42 | 1066.8 | 1600.2 | 1066.8 | 662.8 | 518 | 346 | 259 |
| 1100 | 44 | 1117.6 | 1676.4 | 1117.6 | 694.4 | 570 | 380 | 285 |
| 1150 | 46 | 1168.4 | 1752.6 | 1168.4 | 725.9 | 623 | 415 | 311.5 |
| 1200 | 48 | 1219.2 | 1828.8 | 1219.2 | 757.5 | 677 | 452 | 338.5 |
| Nominal | OD | C to C | End to End | 180˚Weight | ||||
| (NPS) | 180˚ (P) | 180˚(K) | KG/PC | |||||
| A | B | D | Long | Shot | Long | Shot | Long | Short |
| 15 | ½ | 21.7 | 76.2 | - | 49 | - | 0.16 | 0.1 |
| 20 | ¾ | 27.2 | 76.2 | - | 51.7 | - | 0.2 | 0.14 |
| 25 | 1 | 34 | 76.2 | 50.8 | 55.1 | 42.4 | 0.3 | 0.2 |
| 32 | 1¼ | 42.7 | 95.2 | 63.6 | 69 | 53.2 | 0.52 | 0.34 |
| 40 | 1½ | 48.6 | 114.4 | 76.2 | 81.5 | 62.4 | 0.7 | 0.48 |
| 50 | 2 | 60.5 | 152.4 | 101.6 | 106.5 | 81.1 | 1.28 | 0.86 |
| 65 | 2½ | 76.3 | 190.6 | 127 | 133.5 | 101.7 | 2.24 | 1.5 |
| 80 | 3 | 89.1 | 228.6 | 152.4 | 158.9 | 120.8 | 3.16 | 2.1 |
| 90 | 3½ | 101.6 | 266.8 | 177.8 | 184.2 | 139.7 | 4.34 | 2.9 |
| 100 | 4 | 114.3 | 304.8 | 203.2 | 209.6 | 158.8 | 5.82 | 3.88 |
| 125 | 5 | 139.8 | 381 | 254 | 260.4 | 196.9 | 8.98 | 5.98 |
| 150 | 6 | 165.2 | 457.2 | 304.8 | 311.2 | 235 | 14.18 | 9.46 |
| 200 | 8 | 216.3 | 609.6 | 406.4 | 413 | 311.4 | 28.8 | 19.22 |
| 250 | 10 | 267.4 | 762 | 508 | 514.7 | 387.7 | 50.8 | 33.8 |
| 300 | 12 | 318.5 | 914.4 | 609.6 | 616.5 | 464.1 | 76.2 | 50.8 |
| 350 | 14 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 | 113.4 | 75.6 |
| 400 | 16 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 | 148.6 | 99 |
| 450 | 18 | 457.2 | - | - | - | - | 188.4 | 125.6 |
| 500 | 20 | 508 | - | - | - | - | 232 | 155.4 |
| 550 | 22 | 558.8 | - | - | - | - | 282 | 188.2 |
| 600 | 24 | 609.6 | - | - | - | - | 336 | 224 |
| 650 | 26 | 660.4 | - | - | - | - | 396 | 264 |
| 700 | 28 | 711.2 | - | - | - | - | 460 | 308 |
| 750 | 30 | 762 | - | - | - | - | 528 | 352 |
| 800 | 32 | 812.8 | - | - | - | - | 602 | 402 |
| 850 | 34 | 863.6 | - | - | - | - | 680 | 454 |
| 900 | 36 | 914.4 | - | - | - | - | 760 | 506 |
| 950 | 38 | 965.2 | - | - | - | - | 850 | 566 |
| 1000 | 40 | 1016 | - | - | - | - | 942 | 628 |
| 1050 | 42 | 1066.8 | - | - | - | - | 1036 | 692 |
| 1100 | 44 | 1117.6 | - | - | - | - | 1140 | 760 |
| 1150 | 46 | 1168.4 | - | - | - | - | 1246 | 830 |
| 1200 | 48 | 1219.2 | - | - | - | - | 1354 | 904 |
Our products:
Material
1) Carbon Steel ,S235 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Galnavized (Hot Dipped Galvanized or Electro Galvanized
About Us:
Cangzhou Authentic Pipe fitting Manufacturing Co., Ltd., which specialize in the manufacture and export of Pipe fittings for 20 years,Covers an area of 100,000 square meters,among them there are the building area of 50,000 square meters. Our products is covering ELBOW,FLANGE,TEE, REDUCER, CAP and steel pipes, our material is including carbon steel , stainless steel, alloy steel with black painting and am anti-rust oil. We also have ISO, PED ,GOST and API certificates to make sure our quality, our goods is sold to Europe, Southeast ,East Europe and many other countries.
Our Certificate:
1. Are you trading company or manufacturer ?
We are manufacturer
2. How long is your delivery time?
Generally it is 10-15 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Paymen 30% T/T pay in advance , the balance should be paid against the copy of B/L
