Product Details:
|
| Product: | Carbon Steel Flange | Material: | ASTM/ASME A105 |
|---|---|---|---|
| Standard: | ANSI, MSS, AWWA, DIN, UNI, JIS, BS, EN1092, GOST, SABS | Pressure: | PN6 PN10 PN16 PN40 PN64 PN100 PN160 PN200 |
| DELIVERY: | 15DAYS | Technics: | Forged, Casting, Finish Turning, Rolled, Cold Pressing |
| Finished: | Black, Yellow Paint, Rust Proof Oil | ||
| Highlight: | ss 316l steel forged flange,ansi b16.47 steel forged flange,socket weld ss 316l flange |
||
Socket Weld Flange, Asme ANSI B16.5, Asme ANSI B16.47 Flanges
The socket welding flange is called (SW flange), and the basic shape of the socket flange is the same as the flat welding flange with neck. A socket is opened in the inner hole of the flange, and a pipe is inserted into the socket and welded. Weld the weld ring on the back of the flange. The crevice between the socket flange and the grass groove is prone to corrosion, and corrosion can be avoided if the inner weld is welded. The fatigue strength of the inner and outer welded socket flanges is 5% higher than that of the flat welded flanges, and the static strength is the same. When using this Socket Flange, its ID must match the ID of the pipe. Socket flanges are only suitable for pipes with a nominal diameter of 50 or less.
| Size | 1/2″ to 48″ DN10~DN5000 |
| Flange Standards | ANSI, MSS, AWWA, DIN, UNI, JIS, BS, EN1092, GOST, SABS |
| Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ANSI B16.5 | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Process | Forged |
| Test Certificates | Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique | Forged, Heat treated and machined |
| Types | Weld Neck, Blind, Slip-On, Socket-Weld, Threaded, Orifice, Spectacle Blinds |
| Uses & application |
Bitumen upgraders. Heavy oil refineries. |
FORGED FLANGE ASME B16.5 &ASME B16.47

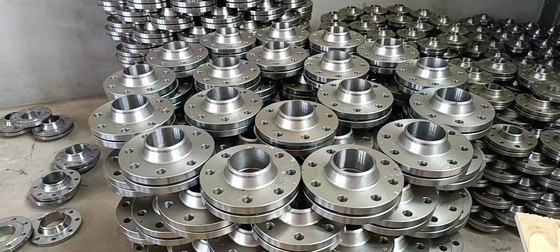

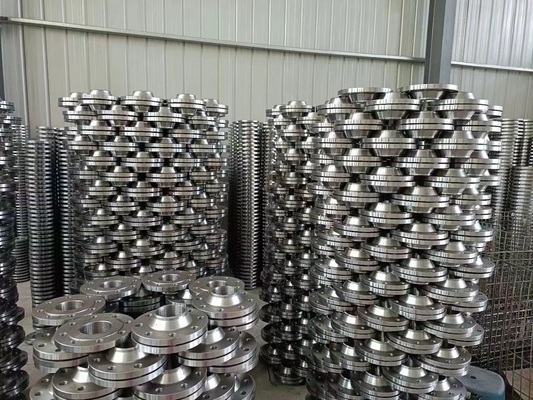

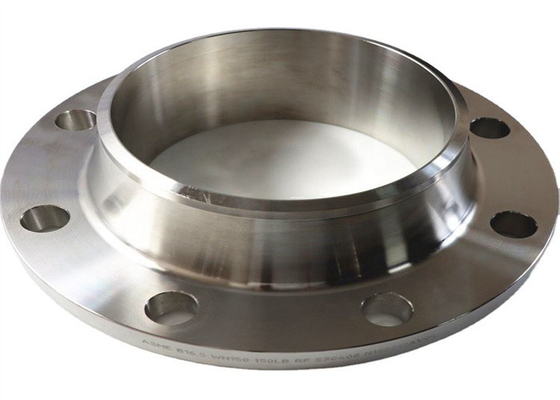

Forged Flange ANSI B16.5 &ASME B16.47 ASTM A105 150LBS 300LBS Welding Neck With Black Painting
Material: Carbon Steel ASTM A105/A105N; A694 F42-F70;A-350 LF1/LF2;
Stainless Steel ASTM A182 F304/304L,F316/316L F321 F51
Alloy Steel ASTM A182 F11/F12 /F22
Produce Method: Forged
Flange Type:Welding Neck , Slip On , Blind , Socket Welding, Lap jont and Threaded Flange
Pressure :125lbs ,150lbs, 300lbs ,400lbs, 600lbs ,900lbs ,1500lbs and 2500lbs
Size Range:1/2"-72"
Thickness: SCH10, SCH20, SCH30 ,STD ,SCH40, XS,SCH80, SCH100, SCH120 ,SCH160
Surface :Raised Face(RF), Flat Face(FF), Ring Joint(RTJ)
Threaded Type:NPT and BSP
Marking:XF ASME B16.5/ ASME B16.47 Pressure Material Size RXX Thickness Heat No.
Coating:Black Paint , Yellow Paint , Hot Galvanized , Cold Galvanized and Oil
Certificates:ISO 9001, PED , AD2000 W0 , MTC WITH EN 10204-3.1 Forma
About Us:
Cangzhou Authentic Pipe fitting Manufacturing Co., Ltd., which specialize in the manufacture and export
of Pipe fittings for 20 years. Our products is covering ELBOW, FLANGE,TEE, REDUCER, CAP and steel
pipes, our materialis including carbon steel , stainless steel, alloy steel with black painting and am
anti-rust oil.
We also have ISO, PED and API certificates to make sure our quality, our goods is sold to Europe,
Southeast ,East Europe and many other countries.
OUR PRODUCTS:
FAQ:
1. Are you trading company or manufacturer ?
We are manufacturer
2. How long is your delivery time?
Generally it is 10-15 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Paymen 30% T/T pay in advance , the balance should be paid against the copy of B/L
