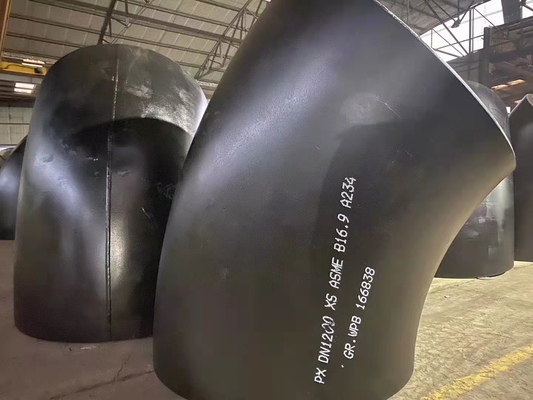

Ansi / Asme B16.9 Std Butt Welding Elbow Big Size A234 Wpb

Ansi / Asme B16.9 Std Butt Welding Elbow Big Size A234 Wpb
Ansi / Asme B16.9 Std Butt Welding Elbow Big Size A234 Wpb Ansi / Asme B16.9 Std Butt Welding Elbow Big Size A234 Wpb

Large Image :  Ansi / Asme B16.9 Std Butt Welding Elbow Big Size A234 Wpb

Product Details:
Place of Origin: CHINA
Brand Name: AUTHENTIC
Certification: PED ISO API CE
Model Number: 426
Payment & Shipping Terms:
Minimum Order Quantity: 1 tons
Price: 1 USD
Packaging Details: wooden box
Delivery Time: 15days
Payment Terms: T/T, D/P
Supply Ability: 50000 Tons Per Year

Ansi / Asme B16.9 Std Butt Welding Elbow Big Size A234 Wpb

Description
Product: Welded Pipe Fittings Size: 530 630 720 820
Color: Black Painting Thickness: 8mm,12mm
Standard: GOST Material: Stainless Steel,Carbon Steel,Stainless Steel(ASTM A403 WP304
Packing: Wooden Cases,or As Per Clients' Requirements,In Wooden Cases Or Pallets Surface: Anti Rust Oil,Sand Rolling Or Sand Blasting,hot Galvanized
Usage: Oil Gas Water Industrial,pipe-line Connection Technics: Forged
Highlight:

ansi b16 9 butt welding elbow

,

a234 wpb butt welding elbow

,

std asme b16 9 elbow

ANSI /ASME B16.9 STD BUTT WELDING ELBOW BIG SIZE A234 WPB

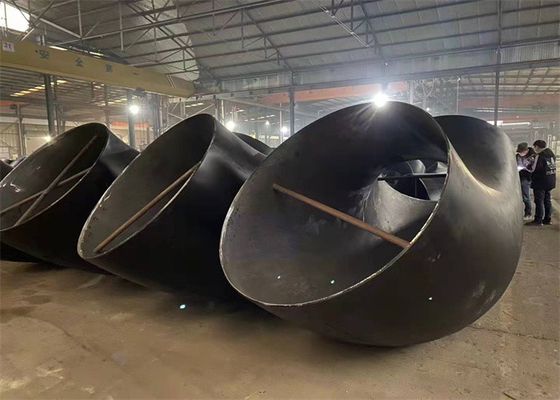

Type : large-diameter carbon steel pipe elbow

Radius: Short radius carbon steel elbow

Degree: 30.60. 90 degree Short radius carbon steel elbow

Application: shipbuliding,petroleum,chemical,gas,power,construction,etc

Product name: Elbow

Size: 1/4” to 48” Outside Diameter 13.7 mm to 1219 mm

Standard: ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25 BS1965 BS1640

DIN 2605 DIN2615 DIN2616 DIN2617

JIS B2311 JISB2312 JISB2313 JISB2316

ISO 3419-1981 ISO5251-1981

Material: A234 WPB, A105, A283-D, A135-A, A53-A, A106-A, A179-C, A214-C, A192, A226, A315-B, A53-B, A106-B, A106-C, A178-C, A210-A-1, A210-C.

Certificates: API5L ,ISO 9001:2008,SGS, BV, ccic

Wall thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS

Surface Treatment: black paint, varnish, oil, galvanized

Marking: Standard marking, or according to your request. Marking Method: Spray white paint

Packaging: wooden case & pallet

Test: Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.





Type Elbow
Size 1/2"-72" DN15-DN2000
Wall thickness Sch 10- Sch xxs
Connection Butt-welding
Surface anti rust black painted, anti rust oil, galvanizing
Material

Carbon steel: ASTM A106 GRB/ A53 GRB/ API 5L GRB/A335/ST37/ST52

Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911

Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N

ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti

ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H

Standards

ASME/ANSI B16.9/B16.11/B16.28

MSS SP-43/SP-83

GOST17378-2001/17376-2001/17375-2001

JIS B2311/B2313/B2316

DIN2605

BS1740.1,BS1965 ,BS1640,BS3799

Cangzhou authentic Pipe-Fitting Manufacture Co.,ltd.is located in Mengcun County,which is reputed as the center of manufacturing industrial pipe fitting in China.lt faces the Gulf of Bohai Sea and the port of Tianjin in the east.Being adjacent to the capital Beijing in the north.So the authentic Pipe-fitting Co.,ltd.is located with great advantages,not only in location but also in technical support for its fast developing.

Cangzhou authentic Pipe-Fitting Manufacture Co.,ltd..Possesses a site of 150000 squaremeter,with the building of 50000 square meters,and permanent assest 78 million.The unmber of staff reached 280.Among them,these are 22 senior engineers 36 assistant engineers and 26 technicians,The corporation has employed 15 pipe-fittings manufacturing and flanges-making production lines.the technipue,such as beaten,forging,machine-processing.lntermediate-frequency pushing,cold-moulding,high extruding and heat treatment,are all available in our mill,in addition,more and more attention are paid to the improvement of inspecting equipment with sole purpose of ensuring the quality of our products.Advanced Equipments as well as corresponding detecting skills have been adopted constantly,such as Chemical Elements Analyzing,Metal Test,physics inspecting and Nondestructive Detecting.Besides,we have employed the most advanced Material Composition analyzing equipments Spectum Direct-reading Equipment(made in England)with it chemical compositon of all kinds of metal material could be tested directly and exactly.
