304 Stainless Steel Buttweld Pipe Fittings 90 Degree Stainless Elbow DN6-DN800
| MOQ: | 100kgs |
| Price: | Negotiation |

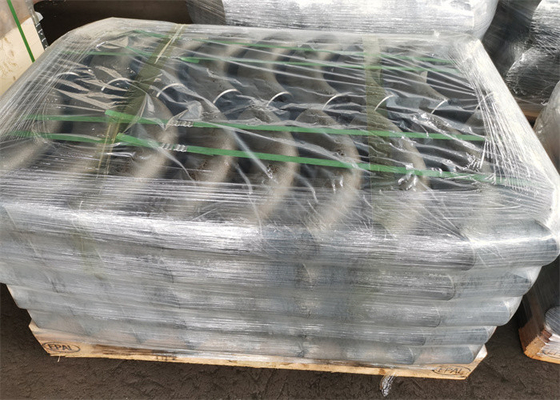

| Standard Packaging: | Standard sea worth bundles,Standard Plywood cases |
| Delivery Period: | 15days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 2000tons/per month |
Detail Information
Place of Origin
China
Brand Name
YUHAO
Certification
ASTM, AISI, GB, DIN, JIS
Model Number
Butt Weld Pipe Fittings
Wall Thickness:
SCH10-SCH160
Customized Support:
OEM, ODM, OBM
Pressure Rating:
150LB
Pipe Fitting Type:
Elbow
Connection Type:
Butt Welded
Application:
Oil, Gas, Chemical, Petrochemical, Power, Etc.
Size:
DN6-DN800
Standard:
EN, ASTM, AISI, DIN, JIS
Grade:
304, 304L, 316, 316L, 321, 310s
Trade Terms:
CNF,FOB, CIF, CFR, CNF, EXWORK
Highlight:
304 Stainless Steel Buttweld Pipe Fittings
,DN6 Stainless Steel Buttweld Pipe Fittings
,DN800 90 degree stainless elbow
Product Description
304 Stainless Steel Butt Weld Pipe Fittings 90 Degree Stainless Elbow DN6-DN800
Product Specifications
| Attribute | Value |
|---|---|
| Wall Thickness | SCH10-SCH160 |
| Customized Support | OEM, ODM, OBM |
| Pressure Rating | 150LB |
| Pipe Fitting Type | Elbow |
| Connection Type | Butt Welded |
| Application | Oil, Gas, Chemical, Petrochemical, Power, etc. |
| Size | DN6-DN800 |
| Standard | EN, ASTM, AISI, DIN, JIS |
| Grade | 304, 304L, 316, 316L, 321, 310s |
| Trade Terms | CNF, FOB, CIF, CFR, CNF, EXWORK |
Product Description
The 304 Stainless Steel Socket Weld Fittings 90-Degree Elbows are designed for high-performance industrial applications, offering exceptional corrosion resistance and durability. Made from premium 304 stainless steel, these elbows ensure reliable performance in high-pressure and high-temperature environments.
The socket weld design provides a secure, leak-proof connection, while the 90-degree angle facilitates smooth flow direction changes. Ideal for chemical, petrochemical, and oil & gas industries, these fittings guarantee seamless integration and long-term reliability. Precision-engineered to meet industry standards, they are a trusted solution for demanding piping systems.
Product Dimensions and Specifications
| Nominal Diameter | Outside Diameter | Center to End | Center to Center | Weight (kg/pc) |
|---|---|---|---|---|
| DN15 (1/2") | 21.3mm | 16mm | 38mm | 0.04-0.10kg |
| DN20 (3/4") | 26.7mm | 19mm | 38mm | 0.06-0.13kg |
| DN25 (1") | 33.4mm | 22mm | 38mm | 0.07-0.19kg |
| DN32 (1 1/4") | 42.2mm | 25mm | 48mm | 0.11-0.34kg |
| DN40 (1 1/2") | 48.3mm | 29mm | 57mm | 0.16-0.49kg |
| DN50 (2") | 60.3mm | 35mm | 76mm | 0.27-0.90kg |
| DN65 (2 1/2") | 73mm | 44mm | 95mm | 0.55-1.79kg |
| DN80 (3") | 89mm | 51mm | 114mm | 0.82-2.76kg |
| DN100 (4") | 114mm | 64mm | 152mm | 1.32-5.35kg |
| DN150 (6") | 168.3mm | 95mm | 229mm | 3.86-15.41kg |
| DN200 (8") | 219mm | 127mm | 305mm | 7.03-31.17kg |
| DN300 (12") | 325mm | 190mm | 457mm | 22.16-95.81kg |
| DN400 (16") | 426mm | 254mm | 610mm | 40.09-206.35kg |
| DN500 (20") | 529mm | 318mm | 762mm | 71.48-391.34kg |
| DN600 (24") | 630mm | 381mm | 914mm | 119.37-661.10kg |

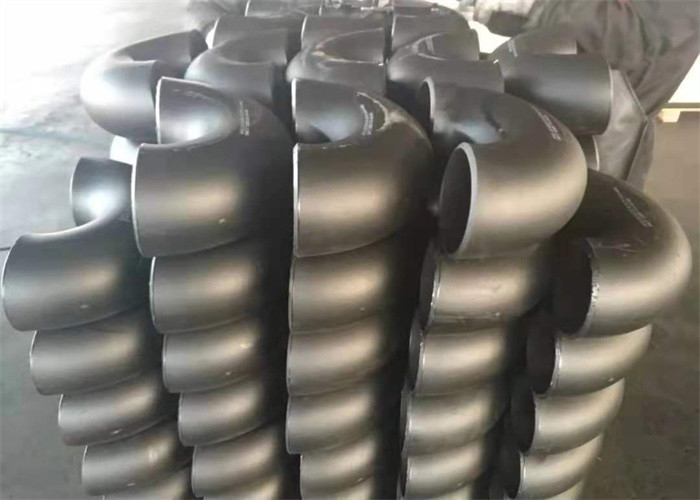

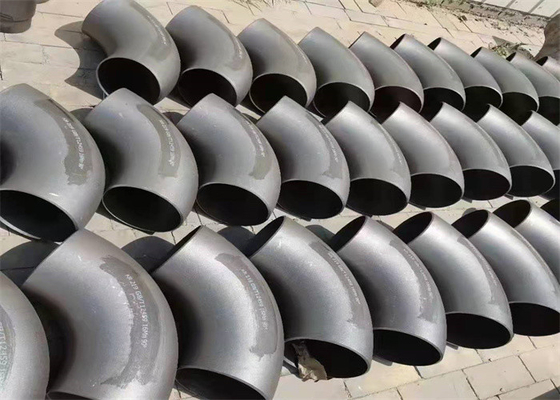

Product Images
Frequently Asked Questions
Q1: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
Q2: Do you have your own factory?
A: Yes, we do. We have our own factory, and we can provide stable stock with competitive price and good quality.
Q3: Do YUHAO produce non-standard item?
A: Yes, we do. Send your specification drawings to our sales representative, then you will get a quotation.
Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: How long is your delivery time?
A: Depending on the quantity.
