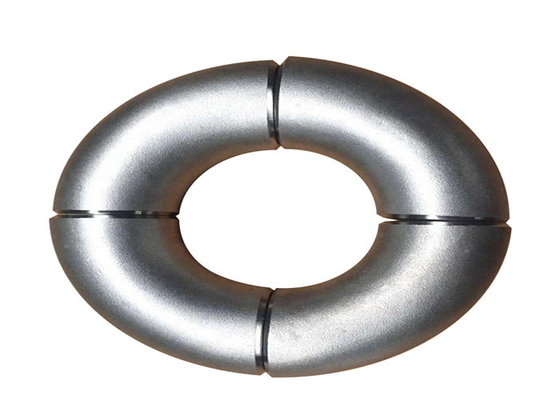

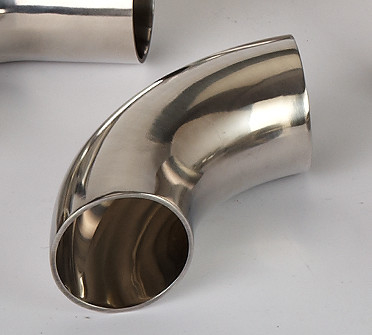

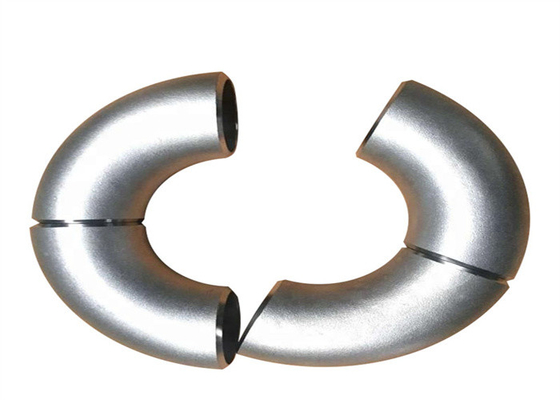

SMLS LR Stainless Steel Elbow

SMLS LR Stainless Steel Elbow
SMLS LR Stainless Steel Elbow SMLS LR Stainless Steel Elbow SMLS LR Stainless Steel Elbow

Large Image :  SMLS LR Stainless Steel Elbow

Product Details:
Place of Origin: Cangzhou,Hebei
Brand Name: Bian
Certification: ABS/ISO/ABS/Ad2000/PED
Model Number: 1"-24"
Payment & Shipping Terms:
Minimum Order Quantity: 100Pcs
Price: 10-500USD
Packaging Details: Standard export seaworthy packing
Delivery Time: two weeks
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 20Tons in 10 days

SMLS LR Stainless Steel Elbow

Description
Material: Stainless/alloy Steel Connection: Welding
Type: Elbow,seamless,welding Surface Treatment: Mirror Polished,High Polished,Sand Blasting
Standard: Gb And So On,DIN,ASTM,ANSI / ASME Product Name: Schedule 40 Stainless Steel 90 Degree Elbow SCH160 R=1.5D
Highlight:

SMLS LR Stainless Steel Elbow

,

AISI321 Stainless Steel Elbow

,

SMLS LR 90 degree Elbow Fitting

Stainless Steel Elbow LR Butt weld 2 inch 90 degree smls elbow stainless steel AISI321 304L sch40s elbow



It is usually added to the carbon steel based on the high proportion of Cr, Ni and other alloys, the content proportion can reach over 20%. The common types of steel are: 304,304 L, 321,316,316 L, 1Cr18Ni9Ti, 0cr18ni9, the first several steel Numbers expressed in the number of Numbers as Japan, the American steel signal method, and the latter one (1Cr18Ni9Ti) as the domestic steel number method.



Product Name
Pipe elbow
Size
1/2"-24" seamless, 26"-60" welded
Standard
ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.
Wall thickness
SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40,
SCH60, SCH80, SCH160, XXS and etc.
Elbow
30° 45° 60° 90° 180°,etc
Radius
LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D,
10D,20D etc.
End
Bevel end/BE/buttweld
Surface
Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished,
shinning



Material
Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S,
A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,
1.4541, 254Mo and etc.
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,
UNS32760, 1.4462,1.4410,1.4501 and etc.
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,
C22, C-276,Monel400, Alloy20 etc.


SMLS LR Stainless Steel Elbow 0



SMLS LR Stainless Steel Elbow 1SMLS LR Stainless Steel Elbow 2



Cangzhou Authentic Fittings is specializes in manufacturing & exporting carbon steel pipe fittings and flanges. The professional manufacturing capacity of FITTINGS strongly guarantees the high quality, competitive price and short delivery time,has have accumulated rich experience and good reputation in years of serving customers, which making us a reliable pipe fittings & flange supplier to clients from countries over the world.

We have also achieved PED,AD 2000-Merkblatt W0,ABS,ISO,GOST API 5L approved.



Quality is our top most priority. Over the years, we have worked to solve problems previously associated with our fittings and have improved product designs for better performance. A strict quality management system is implemented to control each phase of production. The quality of our products is also guaranteed by our advanced production equipment. These help us save raw materials, shorten production time and reduce production costs. Being of excellent quality and reasonable prices, our products are well received in many countries such as UK, Italy, Germany, the United States, Canada, Chile, Bolivia, United Arab Emirates, Brazil and so on.



SMLS LR Stainless Steel Elbow 3

SMLS LR Stainless Steel Elbow 4

SMLS LR Stainless Steel Elbow 5
