304 304L 316 316L Stainless Steel 45 Degree Elbow BW Pipe Fittings
| MOQ: | 100kgs |
| Price: | Negotiation |
| Standard Packaging: | Standard sea worth bundles,Standard Plywood cases |
| Delivery Period: | 15days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 2000tons/per month |
Detail Information
Place of Origin
China
Brand Name
YUHAO
Certification
ASTM, AISI, GB, DIN, JIS
Model Number
Butt Weld Pipe Fittings
Wall Thickness:
SCH10-SCH160
Material:
304, 304L, 316, 316L, 310, 2205, 2507
Pipe Fitting Type:
Elbow
Forming Process:
Butt Welding
Application:
Water Conservancy, Beverage, Pharmaceutical, Power Plants
Diameter Range:
DN15-DN900
Brand Name:
Yuhao
Technique:
Cold Rolled, Hot Rolled, Cold Drawn
Finish:
Bright, Brush, Polish
Trade Terms:
CNF, FOB, CIF, CFR, EXWORK
Highlight:
316L bw pipe fittings
,45 Degree bw pipe fittings
,304L bw elbow
Product Description
304 304L 316 316L Stainless Steel 45 Degree Elbow BW Pipe Fittings
Product Specifications
| Wall Thickness | SCH10-SCH160 |
| Material | 304, 304L, 316, 316L, 310, 2205, 2507 |
| Pipe Fitting Type | Elbow |
| Forming Process | Butt Welding |
| Application | Water Conservancy, Beverage, Pharmaceutical, Power Plants |
| Diameter Range | DN15-DN900 |
| Brand Name | Yuhao |
| Technique | Cold Rolled, Hot Rolled, Cold drawn |
| Finish | Bright, Brush, Polish |
| Trade terms | CNF, FOB, CIF, CFR, EXWORK |
Product Description
Crafted from high-grade stainless steel, these 45° elbow fittings provide superior corrosion resistance and durability for demanding piping systems. The butt weld design ensures a strong, leak-proof connection, ideal for high-pressure and high-temperature applications in chemical, petrochemical, and oil & gas industries.
The 45-degree angle enables smooth directional changes while minimizing flow resistance and turbulence. Precision-engineered to meet industry standards, these fittings offer excellent weldability, long-term reliability, and seamless integration into pipelines. Suitable for both industrial and commercial use, they deliver optimal performance in corrosive and extreme environments.
Additional Specifications
| Place of Origin | Zhejiang, China |
| Customized Support | OEM, ODM |
| Connectivity | Welding |
| Product name | Stainless Steel Elbow |
| Material | 310s/304/304L/316/316L/2205/2507 etc. |
| Size | 1/2" 3/4" 1" 2" 3" 4" 5" 6" 7" 8" 10" 12" 14" 16" 18" 20" 22" 24" etc. |
| Surface treatment | Mirror, Polishing, Sandblasting, Sand rolled |
| Standard | DIN, ANSI, JIS, ASME, SMS, BSP, API, IDF, EN, ASTM |
Product Dimensions
| DN | NPS | OD | Nominal Wall Thickness |
|---|---|---|---|
| 6 | 1/8 | 10.3 | - | 1.24 | 1.73 | 2.41 | - | - | - | 1.73 | 1.73 | - | 2.41 |
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 3.02 | - | - | - | 2.24 | 2.24 | - | 3.02 |
| 10 | 3/8 | 17.1 | - | 1.65 | 2.31 | 3.2 | - | - | - | 2.31 | 2.31 | - | 3.2 |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 3.73 | - | - | - | 2.77 | 2.77 | - | 3.73 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 3.91 | - | - | - | 2.87 | 2.87 | - | 3.91 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | - | - | - | 3.38 | 3.38 | - | 4.55 |
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 4.85 | - | - | - | 3.56 | 3.56 | - | 4.85 |
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 5.08 | - | - | - | 3.68 | 3.68 | - | 5.08 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 5.54 | - | - | - | 3.91 | 3.91 | - | 5.54 |
| 65 | 2 1/2 | 73 | 2.11 | 3.05 | 5.16 | 7.01 | - | - | - | 5.16 | 5.16 | - | 7.01 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 | - | - | - | 5.49 | 5.49 | - | 7.62 |
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 | - | - | - | 5.74 | 5.74 | - | 8.08 |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | - | - | - | 6.02 | 6.02 | - | 8.56 |
| 125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 9.53 | - | - | - | 6.55 | 6.55 | - | 9.53 |
| 150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 10.97 | - | - | - | 7.11 | 7.11 | - | 10.97 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 12.7 | - | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 |
| 250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 12.7 | - | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 12.7 | - | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | - | - | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 |
| 400 | 16 | 406.4 | 4.19 | 4.78 | - | - | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 |
| 450 | 18 | 457 | 4.19 | 4.78 | - | - | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 |
| 500 | 20 | 508 | 4.78 | 5.54 | - | - | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 |

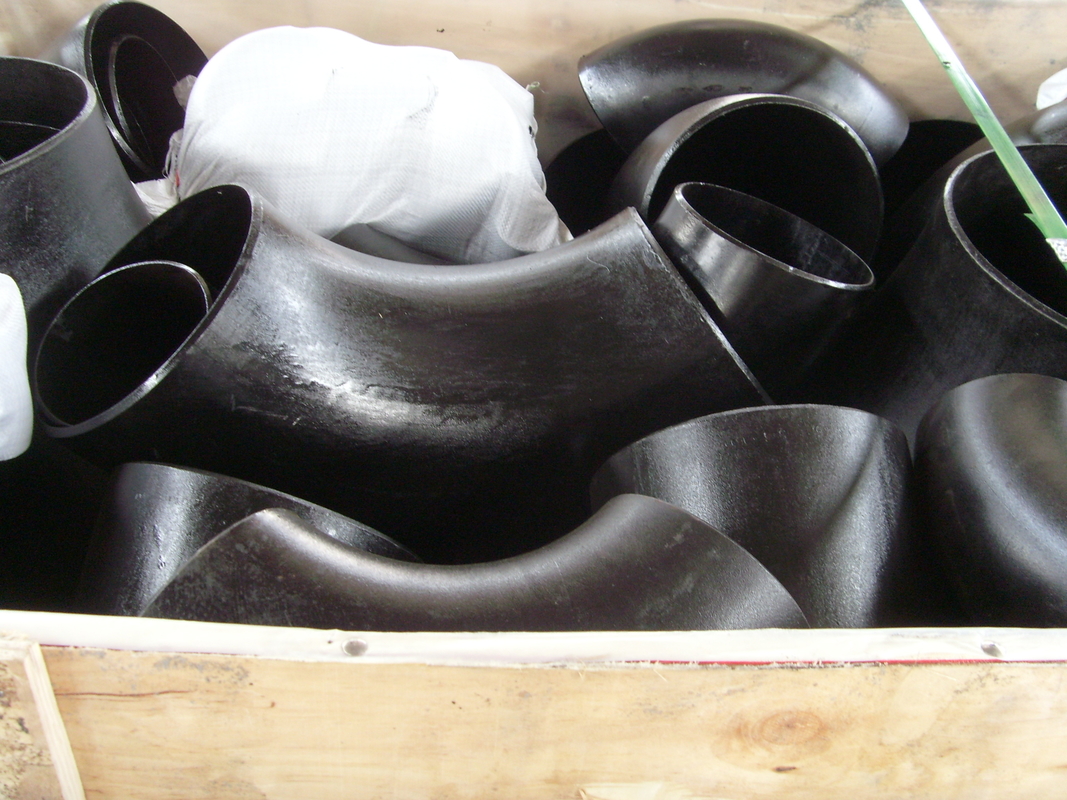

Product Images
Frequently Asked Questions
Q: How is the quality about the products?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q: Are you manufacturer or trading company?
A: We are not only manufacturer but also a trading company, we have more than 12 years export experience.
Q: Can you supply what's the service?
A: We can supply the kinds of metal raw materials and products, such as pipes, pipe fittings, flanges, coil, sheet, round bar and so on.
Q: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
