Product Details:
|
Material: | Carbon Steel | Type: | Concentric Reducer, Eccentric Reduer |
---|---|---|---|
Surface Treatment: | Black Painting, Oil, Galvanize | Main Standard: | ASTM, ANSI, DIN, GOST, BS, GB |
Connection: | Welding, Seamless, Forged | Pipe Size: | Customizable |
Highlight: | 24 X 20 Carbon Steel Reducer,Carbon Steel Reducer Q345 20 Steel,Q345 24 x 20 eccentric reducer |

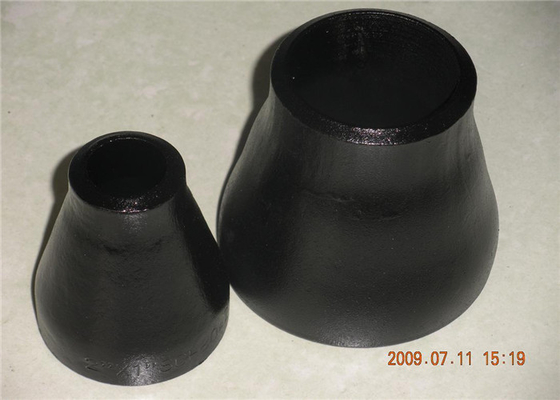

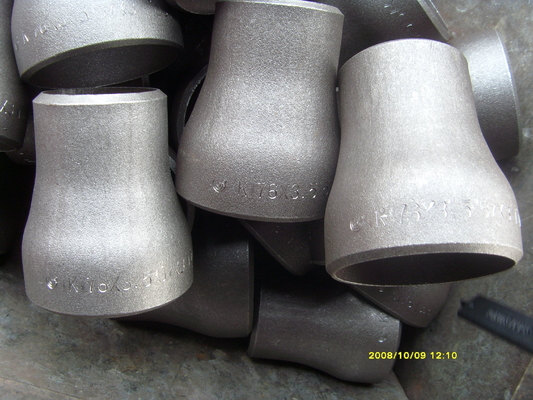

ASTM A234 WPB BUTT-WELDED SEAMLESS REDUCER CARBON STEEL REDUCER
Reducer is one of the chemical pipe fittings, used for two different diameter of the connection. Is divided into concentric reducer and eccentric reducer. Reducer including stainless steel reducer, alloy steel reducer, carbon steel reducer, main material includes Q234, Q345 and 20 steel, etc.
Reducer is used for pipe diameter changes in a pipe. Usually adopted for reducing the forming process of pressing, expanding to suppress or reducing and expanding, to certain specifications of the reducer and stamping can be applied.
Size | 1/2"-24" seamless,26“-110”welded |
Wallthickness | Sch10, Sch 20, Sch40, Sch80, Sch160, STD, XS, XXS,SGP |
Color | Black, White, Galvanized, Yellow |
Main Standard | American Standard
Material: Carbon steel ASTM A234 WPB DIN Standard :DIN 2616 Materil: ST37.0 JIS Standard Material: JIS G3452 |
Main Material |
Carbon steel: A234WPB, A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH, P235GH, P265GH, P280GH,P295GH,P355GH and etc. Pipeline steel: WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc. Cr-Mo allo steel: P11,P22,P5, P9,P91, 10CrMo9-10, 16Mo3 etc. |
Technic | Forged, Casting, Heat treatment |

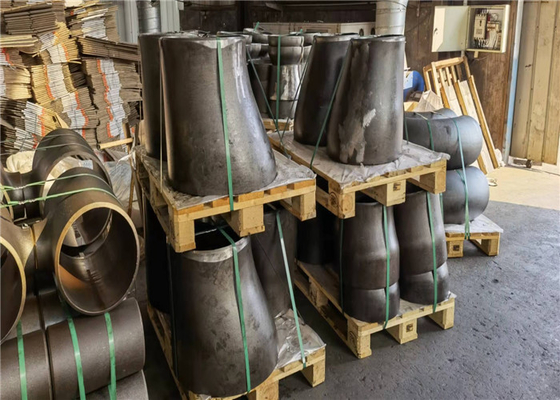

Packing | Wooden case, Wooden pallet, Carton |
End | Bevel end/ Plane end / Buttweld |
Application | gas, air, steam, Connect Pipes, oil |
