Product Details:
|
| Material: | Carbon Steel,stainless Steel,alloy Steel | Connection: | Welding |
|---|---|---|---|
| Technics: | Welded | Size: | 1/2''-72' |
| Type: | Elbow,like Seamless,Fittings | Standard: | DIN,GOST,ASME/ANSI B16.9 |
| Surface Treatment: | Sand Blasting,Hot Galvanized/Light Oil/Black Painting,Transparent/Yellow/Black Anti-rust Paint | Color: | Can Be Customed |
| Application: | Connect Pipes,pipeline,Gas,Industry,Petroleum | Usage: | Pipe-line Connection |
| Package: | Pallet,carton,packed By Wooden Case |

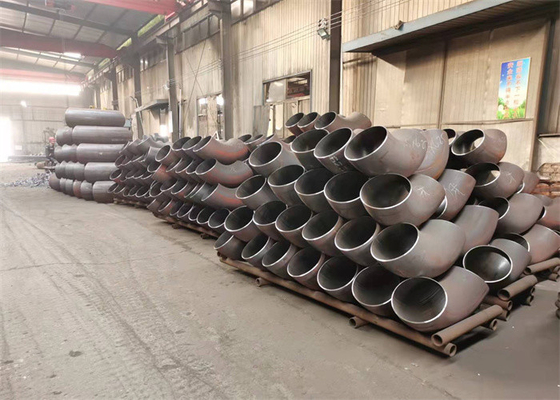

Carbon Steel Elbow carbon steel seamless butted welding Large sizes 24"---48" 90D LR elbow bevelend black painting
The standard elbow is divided into long radius elbow and short radius elbow according to the radius of curvature. Long radius elbow refers to its radius of curvature equal to 1.5 times the outer diameter of the pipe, that is, R = 1.5D
| Brand Name | AUTHENTIC | |
| Product Name | Elbow | |
| Certification | /BV/ABS/LR/TUV/DNV/BIS/API/PED | |
| Place of Origin | Cangzhou China (Mainland) | |
|
Material |
ASTM |
Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
|
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
| Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
|
DIN |
Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
|
JIS |
Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
|
GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
|
| Standard Specification | ASTM,JIS,BS,DIN,UNI etc. | |
| Connection | Welding | |
| Shape | Equal | |
| Technics | Forged | |
| Qualification | ISO9001, API,CE | |
| Equipment | Pushing Machine,Beveling Machine,Sand Blasting Machine | |
| Thickness | Sch10-Sch160 XXS | |
| Size | Seamless 1/2" To 24" Welded 24" To 72" | |
| Surface of Finish | Antirust Oil,Hot Galvanized | |
| Pressure | Sch5--Sch160,XXS | |
| Standard | ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2 | |
| The third party inspection | BV, , LOIYD, TUV, and other party alloyed by clients. | |
| Remark | Also can supply IBR fittings and Specialized NACE & HIC Fittings | |
| Marking | Registered logo,Heat Number,Steel Grade,Standard,Size | |
| Minimum Order Quantity | 1pcs | |
| Supply Ability | 3,0000pcs per month | |
| Price | Depending on quantity | |
| Payment Terms | T/T or Western Union or LC | |
| Supply Ability | 3,0000pcs per month | |
| Delivery Time | 10-50 days depending on quantity | |
| Packing | PLY-wooden case or pallet or as for clients' requirements | |
| Application | Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, | |
|
Advantages |
1. 20 + years of production experience at your service. 2. The fastest delivery 3. The lowest price 4. Most comprehensive standards and materials for your choice. 5. 100% export. 6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc. |
|
| Special design available as the requirement of customer | ||
The short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is,R = D. in the formula, D is the diameter of the elbow and R is the radius of curvature. According to the pressure grade, there are about 17 kinds of pipe standards, which are the same as those in the United States :Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS, among which STD and XS are the most commonly used.
According to the Angle of the elbow, there are 45O elbow, 90O elbow and 180O elbow. In this way, there are many kinds of elbow. When ordering, the order is often expressed as follows: such as "LRSTD90o8", indicating long radius, pressure grade is STD, 8" elbow of 90O; For example,"SRXS45o4" stands for short radius, pressure class XS,4 "elbow of 45O. The above is the general classification of elbow. Gb elbow
We have 90-degree boxes with 45-degree bends. The bending radius is on the standard. There are also long and short radius elbow.
Cangzhou Authentic FITTINGS manufacturing co.,ltd. is a professional pipe fittings manufacturer, located in Donghe Industrial Zone, Mengcun Hui Autonomous County, Cangzhou City, Hebei Province, covering an area of 40000 square meters.The company was registered and established on July 12, 2007.
We specialize in the manufacture of a wide variety of industrial pipe fittings including elbows, bends, tees, crosses, reducers, caps and more. All products adopted American standard ASME(ANSI), European standard EN, German standard DIN ,Japanese standard (JIS) and so on. Our continuing commitment to the production of quality products has made us internationally recognized in the following industries: power generation, petroleum, natural gas, chemical, shipbuilding, heating, paper making, metallurgy, among others. Backed by our skilled and qualified employees, HPCO are able to provide an optimal solution to serve you needs.
Our Certificate:
1. Are you trading company or manufacturer ?
We are manufacturer
2. How long is your delivery time?
Generally it is 10-15 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Paymen 30% T/T pay in advance , the balance should be paid against the copy of B/L
