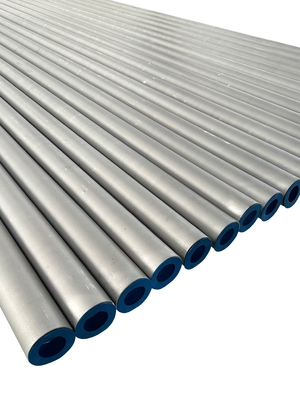

1/2in To 8in ASTM A312 Schedule 10S ANSI Metric Seamless Tubing
| MOQ: | 100KGS |
| Price: | NEGOTIATION |
| Standard Packaging: | PACKAGED IN SEA-WORTH BUNDLES,PACKAGED IN PLYWOOD CASES |
| Delivery Period: | 15-40DAYS |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 1000TONS/PER MONTH |
Detail Information
Place of Origin
CHINA
Brand Name
YH
Certification
ISO PED CE TUV
Model Number
Seamless Pipes
Steel Grade:
304, 316, 321, 310S, Duplex
Corrosion Resistance:
High-Temperature Oxidation Resistance, Seawater Resistance
Standard:
AISI, ASTM, DIN, EN, GB
OD:
1/8''-4''
WT:
SCH 10S, SCH 40S, SCH 80S, SCH160
Length:
0.5M-15M OR AS REQUESTED
Applications:
Pharmaceutical Machinery, Aircraft And Aerospace, Automobile Industry, Heavy Industry
Performance Testing:
HT, RT, MT, PT, UT
Package:
PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED
Highlight:
A312 metric seamless tubing
,Schedule 10S metric seamless tubing
,8in seamless metric tubing
Product Description
1/2in To 8in Astm A312 Schedule 10s ANSI Metric Seamless Tubing
Product Specifications
| Attribute | Value |
|---|---|
| Steel grade | 304, 316, 321, 310S, Duplex |
| Corrosion Resistance | High-Temperature Oxidation Resistance, Seawater Resistance |
| Standard | AISI, ASTM, DIN, EN, GB |
| OD | 1/8''-4'' |
| WT | SCH 10S, SCH 40S, SCH 80S, SCH160 |
| Length | 0.5M-15M OR AS REQUESTED |
| Applications | Pharmaceutical Machinery, Aircraft and Aerospace, Automobile Industry, Heavy Industry |
| Performance Testing | HT, RT, MT, PT, UT |
| Package | PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED |
Product Description
1/2 "-8", 304, Schedule 10, ASTM A312 Economical Stainless Steel Seamless Pipe
Products Information
Stainless steel and Ni-based alloy pipes and tubes are highly valued for their superior corrosion resistance, heat resistance, and low-temperature performance, making them essential for demanding applications in petroleum refining, petrochemicals, and energy sectors such as power and gas. Their exceptional durability and strength have also led to their widespread use in architectural projects, where their polished and refined finish adds to their visual appeal. Moreover, these materials are increasingly utilized in high-cleanliness industries, including semiconductor and liquid-crystal manufacturing equipment, where maintaining strict cleanliness standards is vital for achieving maximum operational efficiency.
Product Size
| B | O.D | SCH 5S | SCH 10S | SCH 10 | SCH 20S | SCH 40S | SCH 40 | STD | SCH 80S | SCH 80 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8" | 10.29 | - | 1.24 | 1.24 | - | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 |
| 1/4" | 13.72 | - | 1.65 | 1.65 | - | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 |
| 3/8" | 17.15 | - | 1.65 | 1.65 | - | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 |
| 1/2" | 21.34 | 1.65 | 2.11 | 2.11 | - | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 |
| 3/4" | 26.67 | 1.65 | 2.11 | 2.11 | - | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 |
| 1" | 33.4 | 1.65 | 2.77 | 2.77 | - | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 |
| 1 1/4" | 42.16 | 1.65 | 2.77 | 2.77 | - | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 |
| 1 1/2" | 48.26 | 1.65 | 2.77 | 2.77 | - | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 |
| 2" | 60.33 | 1.65 | 2.77 | 2.77 | - | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 |
| 2 1/2" | 73.03 | 2.11 | 3.05 | 3.05 | - | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 |
| 3" | 88.9 | 2.11 | 3.05 | 3.05 | - | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 |
| 3 1/2" | 101.6 | 2.11 | 3.05 | 3.05 | - | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 |
| 4" | 114.3 | 2.11 | 3.05 | 3.05 | - | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 |
| 5" | 141.3 | 2.77 | 3.4 | 3.4 | - | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 |
| 6" | 168.28 | 2.77 | 3.4 | 3.4 | - | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 |
| 8" | 219.08 | 2.77 | 3.76 | 3.76 | 6.35 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 |
| 10" | 273.05 | 3.4 | 4.19 | 4.19 | 6.35 | 9.27 | 9.27 | 9.27 | 12.7 | 15.09 |
| 12" | 323.85 | 3.96 | 4.57 | 4.57 | 6.35 | 9.52 | 10.31 | 9.52 | 12.7 | 17.48 |
| 14" | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | - | 11.13 | 9.52 | - | 19.05 |
| 16" | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | - | 12.7 | 9.52 | - | 21.44 |
| 18" | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | - | 14.27 | 9.52 | - | 23.83 |
| 20" | 508 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 26.19 |
| 22" | 558.8 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 28.58 |
| 24" | 609.6 | 5.54 | 6.35 | 6.35 | 9.52 | - | 17.48 | 9.52 | - | 30.96 |
| 26" | 660.4 | - | 7.92 | 12.7 | - | 17.48 | 9.52 | - |
Factory Images
Frequently Asked Questions
Q1: Can you supply what's the service?
A: We can supply the kinds of metal raw materials and products, such as pipes, pipe fittings, flanges, coil, sheet, round bar and so on.
Q2: Are you manufacturer or trading company?
A: We are not only manufacturer but also a trading company, we have more than 12 years export experience.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q5: Can you provide the free samples?
A: We can supply the free samples but the sample express freight need paid by your side.
